Hochiki ESP Intelligent Marine Approved Sensor Mounting Base (White) (YBN-R/3M(WHT))
SKU
YBN-R/3M(WHT)
£3.05
£2.54
Hochiki ESP Intelligent Marine Approved Sensor Mounting Base (White) (YBN-R/3M(WHT))
In Stock
Product Details for Hochiki ESP Intelligent Marine Approved Sensor Mounting Base (White) (YBN-R/3M(WHT))

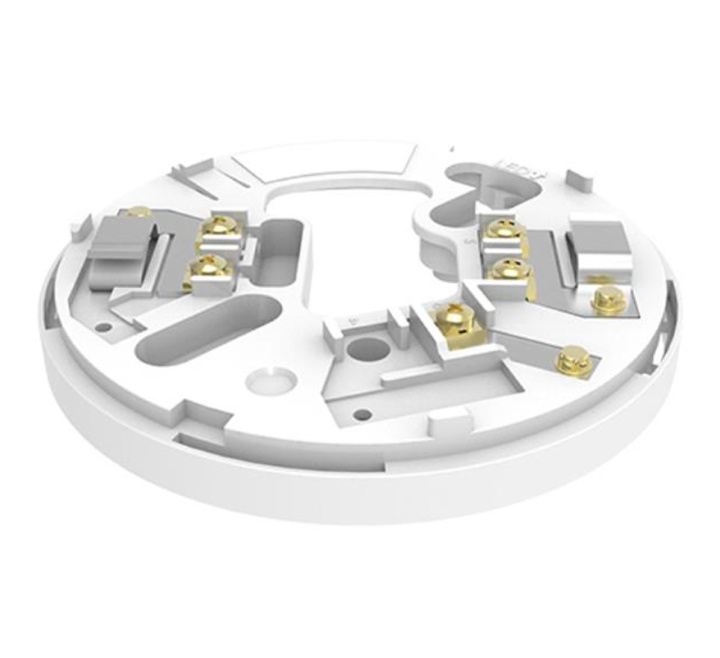

The Hochiki YBN-R/3M is a Common Mounting Base, which is fully compatible with Hochiki’s Marine Approved ESP sensors.
It is supplied with square cable clamps for secure and reliable cable termination and is also capable of driving a remote LED if required.
Key Features of the YBN-R/3M(WHT) |
|---|
|
> Electronics free
> Supports the ESP Marine Approved Sensors > Stainless steel contacts > Takes 2.5 mm cables > Slim profile - only 8 mm > Rugged wiring contacts > Facility for remote indicator > Quick Connection via square cable clamps > Approved to MED by GL |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | YBN-R/3M(WHT) |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki ESP Intelligent Marine Approved Sensor Mounting Base (White) (YBN-R/3M(WHT))
No questions yet. Be the first to ask the question!
Product Specification for Hochiki ESP Intelligent Marine Approved Sensor Mounting Base (White) (YBN-R/3M(WHT))
| Operating Temperature Range | -10 °C to +50 °C |
| Storage Temperature Range | -30 °C to +70 °C |
| Maximum Humidity | 95%RH - Non Condensing (at 40 °C) |
| Colour / Material | Ivory / ABS |
| Weight (g) / Diameter (mm) / Height (mm) | 50 / 100 / 8 |
| Fixing Centres (mm) | 48 ~ 74 |
| Maximum Wire Thickness | 2.5 mm² |
| Cables |
