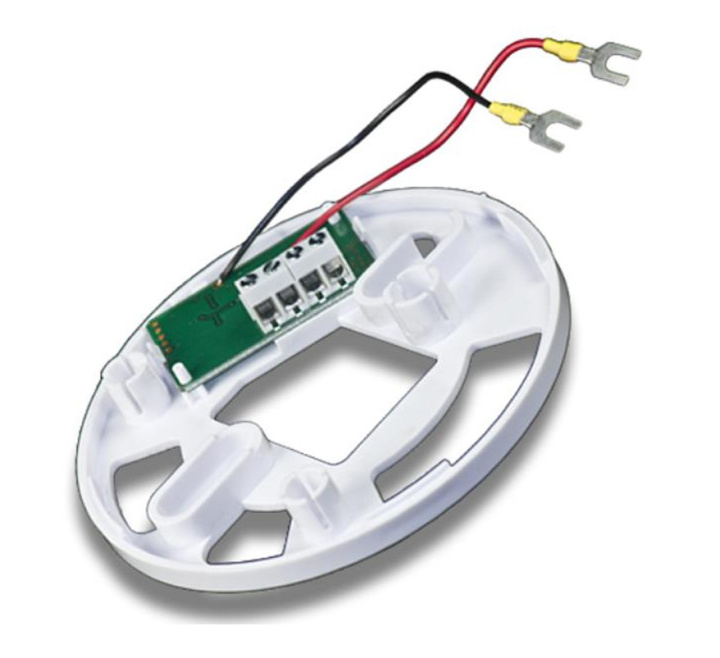

Hochiki YBN-R/3(WHT)-SCI-OEM Short Circuit Isolator Adaptor - Base Not Included (White)
SKU
YBN-R/3(WHT)-SCI-OEM
£13.08
£10.90
Hochiki YBN-R/3(WHT)-SCI-OEM Short Circuit Isolator Adaptor - Base Not Included (White)
- Buy 10 for £12.97 £10.81 each and save 1%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki YBN-R/3(WHT)-SCI-OEM Short Circuit Isolator Adaptor - Base Not Included (White)
The Hochiki YBN-R/3(WHT)-OEM-SCI is an adaptor featuring an integral short-circuit isolator, which has been designed to be fitted to a standard sensor mounting base (YBN-R/3) to convert it into a short-circuit isolator base
This combined unit will then detect and isolate short-circuits on the loop. When a short-circuit is detected the combined unit will drop the power to the rest of the loop
The combined unit is compatible with the ESP range of sensors and does not require a loop address. A remote fire LED facility is provided when a sensor is attached to the combined unit
NOTE: A fitted sensor will still be powered when this device is isolating.
Key Features of the YBN-R/3(WHT)-SCI-OEM |
|---|
|
> Converts standard mounting base to SCI base
> Easy to fit > Ultra-slim profile > Matches standard base colours > Also available in ivory |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | YBN-R/3(WHT)-SCI-OEM |
Write Your Own Review
FAQ’s for Hochiki YBN-R/3(WHT)-SCI-OEM Short Circuit Isolator Adaptor - Base Not Included (White)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki YBN-R/3(WHT)-SCI-OEM Short Circuit Isolator Adaptor - Base Not Included (White)
| Description | Hochiki Short Circuit Isolator Base Adaptor |
| Product Code | YBN-R/3(WHT)-SCI-OEM |
| Protocol: | ESP |
| Operating Voltage: | 17 - 41 V dc (24 V dc nominal) |
| Standby current: | 60 μA |
| Current drawn by isolator during fault condition: | < 4 mA |
| Maximum current consumption from remote LED: | 10 mA (limited by attached sensor) |
| Maximum continuous current: | 1 A |
| Maximum quantity per loop: | 127*1 |
| Ambient temperature range: | -10 °C to + 50 °C |
| Relative humidity: | 10% to 95% RH (at 40°C) |
| Colour/Case material: | White / ABS |
| Base fixing centres: | 48 - 74 mm |
| Max. wire thickness: | 2.5mm2 / terminal |
| Weight: | 79g |
| *1 Check with Fire alarm control panel manufacturer for maximum loop quantities See AP0127 for short-circuit isolator specifications | |
