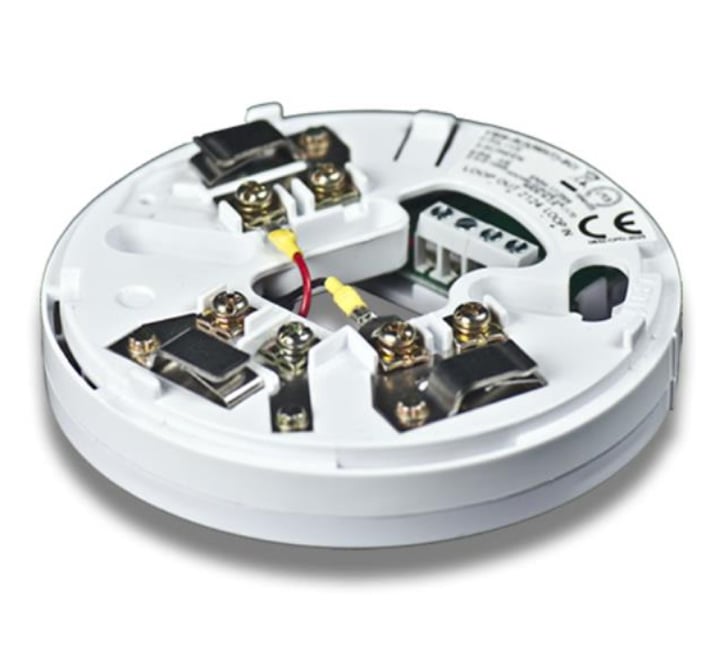

Hochiki ESP Intelligent Marine Approved Sensor Mounting Base with SCI (White) (YBN-R/3M(WHT)-SCI)
SKU
YBN-R/3M(WHT)-SCI
£17.41
£14.51
Hochiki ESP Intelligent Marine Approved Sensor Mounting Base with SCI (White) (YBN-R/3M(WHT)-SCI)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki ESP Intelligent Marine Approved Sensor Mounting Base with SCI (White) (YBN-R/3M(WHT)-SCI)
The Hochiki YBN-R/3M(WHT)-SCI is a marine-approved sensor mounting base featuring an integral short-circuit isolator which will detect and isolate short-circuits on the loop. When a short-circuit is detected during power up the unit will drop the power to the rest of the loop.
The YBN-R/3M(WHT)-SCI is compatible with the ESP range of marine-approved sensors and does not require a loop address. A remote fire LED facility is provided when a sensor is attached to the base.
NOTE: A fitted sensor will still be powered when this device is isolating.
Key Features of the YBN-R/3M(WHT)-SCI |
|---|
|
> Features integral SCI
> Easy to fit > Slim profile > Matches standard sensor and base colours |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | YBN-R/3M(WHT)-SCI |
| Product Series | Hochiki Intelligent Marine |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Colour | White |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki ESP Intelligent Marine Approved Sensor Mounting Base with SCI (White) (YBN-R/3M(WHT)-SCI)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki ESP Intelligent Marine Approved Sensor Mounting Base with SCI (White) (YBN-R/3M(WHT)-SCI)
| Protocol | ESP |
| Operating Voltage | 17 - 41 V dc (24 V dc nominal) |
| Standby Current | 60 μA |
| Current Drawn by Isolator during Fault Condition | < 4 mA |
| Maximum Current Consumption from Remote LED | 10 mA (limited by attached sensor) |
| Maximum Continuous Current | 1 A |
| Maximum Quantity per Loop | 127*1 |
| Ambient Temperature Range | -10 °C to +50 °C |
| Relative Humidity | 10% to 95% RH (at 40°C) |
| Colour and Case Material | Ivory or White ABS |
| Fixing Centres | 48 mm through to 74 mm |
| Maximum Wire Thickness / Terminal | 2.5 mm² |
| Weight | 79 g |
