Hochiki CDX Conventional Optical Beam Smoke Detector (5-100m) (SPC-ET)
Product Details for Hochiki CDX Conventional Optical Beam Smoke Detector (5-100m) (SPC-ET)

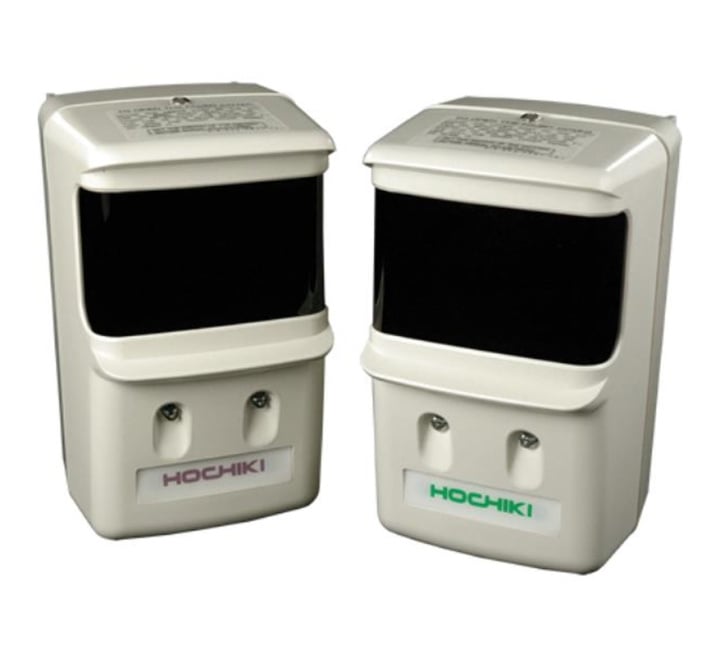

The Hochiki SPC-ET is a two wire beam smoke detector that consists of an emitter and receiver that cover a distance of 5 – 100 m providing a maximum coverage of 1500 m2.
When used on a conventional system the emitter and receiver can be powered directly from the zone or if required the emitter also has an option to be powered from a separate 24 V dc supply. The SPC-ET can also be interfaced to Hochiki’s ESP system, the receiver can be connected to a CHQ-SZM Single Zone Module or a CHQ-DZM Dual Zone Module, and the emitter can then be powered directly from the loop/zone or via a separate 24 V dc supply.
The SPC-ET comes complete with a termination module which fits directly on to a standard UK dual back box, this allows the detector be surface or flush mounted. Line continuity options can be selected on the termination module and these are based on the Schottky or Zener diode method.
Key Features of the SPC-ET |
|---|
|
> 5 to 100 m range
> Automatic contamination compensation > Automatic signal strength adjustment > Emitter can be powered direct from the zone (or loop) > Features a Latching or Non-Latching fault relay > Can be interfaced onto ESP (analogue) system via CHQ-SZM or CHQ-DZM > Approved by LPCB |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | SPC-ET |
| Product Series | Hochiki CDX |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 3 Years |
| Sensor Type | IR Optical Beam |
FAQ’s for Hochiki CDX Conventional Optical Beam Smoke Detector (5-100m) (SPC-ET)
Product Specification for Hochiki CDX Conventional Optical Beam Smoke Detector (5-100m) (SPC-ET)
| Description | Hochiki Optical Beam Smoke Detector |
| Product Code | SPC-ET |
| Dimensions: Emitter: Receiver: |
W:145mm x H:86mm x D:100mm W:145mm x H:86mm x D:100mm |
| Operating voltage: |
15 - 33 V dc |
| Quiescent current (typ): |
250 µA |
| Max. current in alarm: | 50 mA |
| Operation range: | 5 - 100m (between emitter & receiver) |
| Sensitivity range: | 25%, 50% and 60% obscuration (selectable) |
| Operating temperature range: |
-10 °C to +50 °C |
| Storage temperature range: | -30 °C to +60 °C |
| Maximum Humidity: | 95% RH Non Condensing (at 40°C) |
| Colour/ Case material: | Ivory / ACS |
| Line continuity options (interface kit) | Schottky / Zener |
| Approval: | LPCB (EN54:12) |
| Weight: Emitter: Receiver: |
600g 685g |
