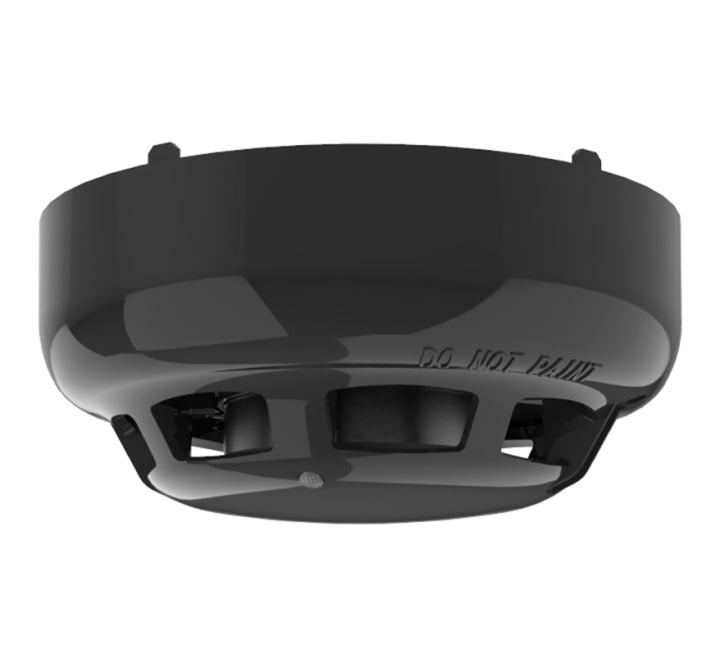

Hochiki CDX Conventional Optical Smoke Detector (Black Case) (SOC-E3N(BLK)

SKU
SOC-E3N(BLK)
£26.17 £21.81
Hochiki SOC-E3N(BLK) Conventional Optical Smoke Detector - Black Case
<span style="color: ForestGreen;">In Stock</span> In Stock

Product Details for Hochiki CDX Conventional Optical Smoke Detector (Black Case) (SOC-E3N(BLK)

The Hochiki SOC-E3N(BLK) is a Photoelectric Smoke Detector, which is fully compatible with the majority of existing Conventional systems. The SOC-E3N(BLK) incorporates Hochiki’s unique High Performance photoelectric smoke chamber removing the need to use Ionisation Detectors in the majority of applications.

‘ASWV’ Drift Compensation technology is incorporated to ensure the Detector is operating at its optimum sensitivity and therefore reducing potential false alarms. If the contamination limit is exceeded then the integral red LED will flash once every three seconds to give a visual warning. The smoke chamber is easily removed or replaced for cleaning and utilises a unique baffle design which allows smoke to enter the chamber whilst keeping out ambient light.


Key Features of the SOC-E3N(BLK)

> Removable, High Performance chamber
> Automatic Sensitivity Window Verification (ASWV) – Drift Compensation Technology
> Remote Indicator output
> Wide voltage range (12 ~ 30 V dc)
> Low profile design with one piece outer cover
> Single fire LED - 360° viewing
> Range of mounting bases
> Approved by LPCB

More information about Hochiki CDX Conventional Optical Smoke Detector (Black Case) (SOC-E3N(BLK)

More Information
Brand Hochiki
Manufacturer Part No. SOC-E3N(BLK)
Product Series Hochiki CDX
Primary Power Source 24V DC
System Type Conventional
Detectable Medium Smoke
Warranty 3 Years
Sensor Type Optical
Write Your Own Review
You're reviewing:Hochiki CDX Conventional Optical Smoke Detector (Black Case) (SOC-E3N(BLK)
Your Rating

Datasheets and Manuals for Hochiki CDX Conventional Optical Smoke Detector (Black Case) (SOC-E3N(BLK)

FAQ’s for Hochiki CDX Conventional Optical Smoke Detector (Black Case) (SOC-E3N(BLK)

Loading...



Ask Question

All questions will be displayed after moderation.

No questions yet. Be the first to ask the question!

Product Specification for Hochiki CDX Conventional Optical Smoke Detector (Black Case) (SOC-E3N(BLK)

Description Hochiki Conventional Photoelectric Smoke Detector
Product Code SOC-E3N(BLK)
Dimensions (mm): Dia: 100 x H 38
Operating voltage: 12 – 30 VDC
Quiescent current (typ): 35 μA
Maximum current alarm: 40 mA
Remote indicator drive: 20 mA (max)
Base fixing centres: 48 ~ 74 mm
Approvals: LPCB EN54: Part 7
IP Rating: IP42
Operating temperature: -10oC to +50oC
Storage temperature: -30 °C to +60 °C
Maximum humidity: 95% RH - Non-condensing (at 40°C)
Colour / Case material: Black / ABS
Weight: 95g excl. base
