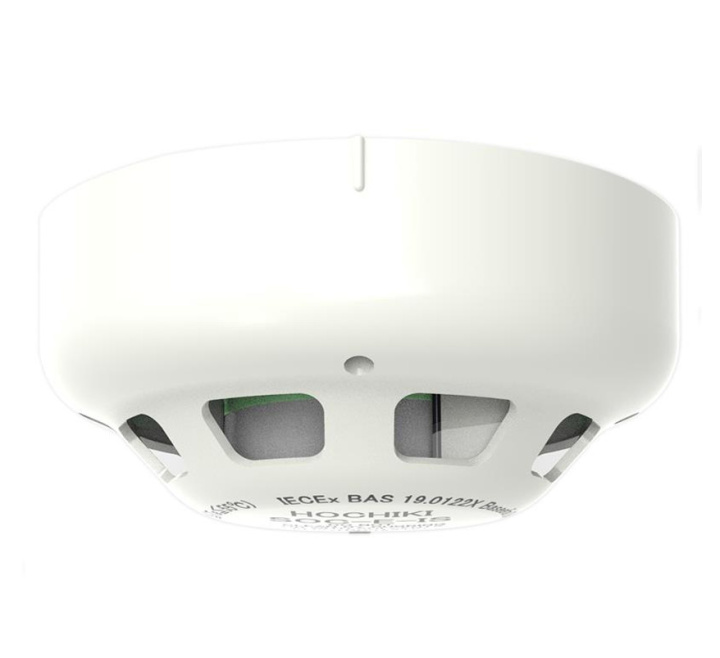

Hochiki SOC-E-IS Intrinsically Safe Conventional Smoke Detector (Ivory)
SKU
SOC-E-IS
£71.29 £59.41
Hochiki SOC-E-IS Intrinsically Safe Conventional Smoke Detector (Ivory)
- Buy 10 for £70.20 £58.50 each and save 2%
- Buy 20 for £69.10 £57.58 each and save 3%
- Buy 50 for £68.00 £56.67 each and save 5%
The Hochiki SOC-E-IS is a Photoelectric Smoke Detector designed for use in hazardous areas which also incorporates a remote indicator output and a removable chamber for easy maintenance.
Each detector incorporates Hochiki’s unique High Performance Chamber Technology removing the need to use Ionisation detectors in the majority of applications. The High Performance Chamber has also enabled the detector threshold level to be increased, thereby improving the signal to noise ratio and reducing susceptibility to false alarms.
| Key Features |
|---|
| > Twin fire LEDs allow 360 degrees viewing > Removable, high performance chamber > Supported by a range of barriers > Remote indicator output > ATEX Classification to: Ex ia IIC T5 Ga (-20°C ≤ Ta ≤ +55°C) > Suitable for installation in areas at Category 1 (inc all lower categories) > Approved by LPCB & VdS |
| Manufacturer | Hochiki |
|---|---|
| MPN | SOC-E-IS |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Description | Hochiki Intrinsically Safe Conventional Smoke Detector |
| Product Code | SOC-E-IS |
| Dimensions: | Dia:100mm x H:48mm |
| Compatible base: | YBN-R/4(IS) |
| Operating Voltage: | 12 - 30 VDC |
| Quiescent Current (typ): | 35 μA |
| Maximum Current In Alarm: | 40 mA |
| Out of Sensitivity Current (RED flashing LED): | 120 μA |
| Remote Indicator Drive: | 20 mA (max) |
| Operating Temperature: | -10 °C to + 50 °C |
| Storage Temperature: | -30 °C to + 60 °C |
| Maximum Humidity: | 95% RH - Non condensing (at 40 °C) |
| IP rating: | IP42 |
| Colour / Case Material: | Ivory / ABS |
| Approvals: | LPCB VdS Bassefa 19ATEX0143X IECEx BAS 19.0122X DNV |
| Weight: | 106g |
