Hochiki SMB-2 DIN Mounting Box - Large (up to 6 DIN rail modules)
SKU
SMB-2
£53.29
£44.41
Hochiki SMB-2 DIN Mounting Box - Large (up to 6 DIN rail modules)
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Hochiki SMB-2 DIN Mounting Box - Large (up to 6 DIN rail modules)

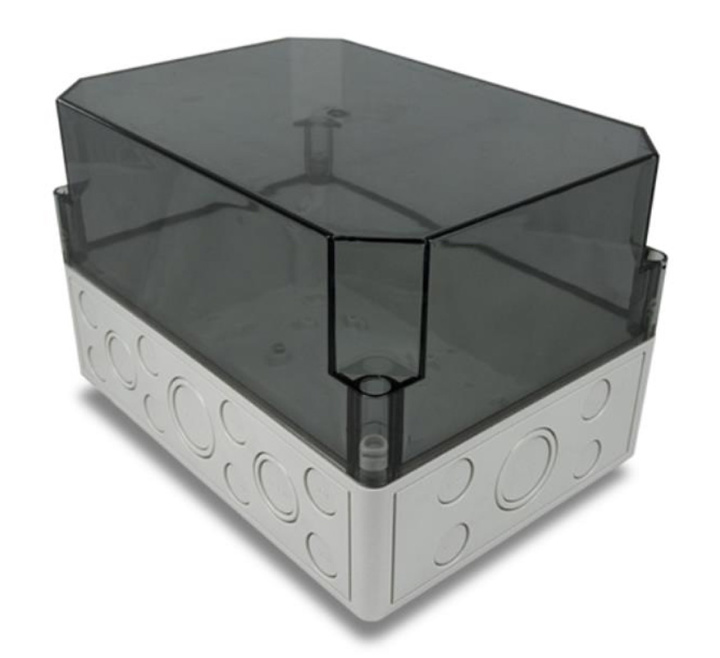

The Hochiki SMB-2 is an IP66-rated, grey (RAL7035) enclosure designed for use with the Hochiki range of DIN Modules. The SMB-2 features a selection of metric knock-outs and is supplied with a transparent black lid as standard. A grey opaque lid, SMB-2(LID), is also available (sold separately).
The unit is supplied with a DIN Rail section (plus fixings) and will accept up to six Hochiki DIN Rail Modules, side-by-side.
Used in conjunction with the SMB-ADAPTOR, an adaptor plate (sold separately), this enclosure can also house any of the PCB assemblies from the Hochiki CHQ Module range or the CHQ-SIM, CHQ-POM or CHQ-SOM “mini” modules.
Key Features of the SMB-2 |
|---|
|
> Designed to house up to 6 Hochiki DIN Modules
> Quick-release screws > Polyurethane gasket provides IP66 protection > Corrosion-free, resistant to most alkaline and acid > Temperature resistance to +40 deg C, Impact resistant, and Non-flammable > 32 knock-outs > Supplied with DIN Rail and fixings |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | SMB-2 |
Write Your Own Review
FAQ’s for Hochiki SMB-2 DIN Mounting Box - Large (up to 6 DIN rail modules)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki SMB-2 DIN Mounting Box - Large (up to 6 DIN rail modules)
| Description | Hochiki DIN Module Enclosure |
| Product Code | SMB-2 |
| Dimensions (mm): | L 254 x W 180 x H 165 |
| IP Rating: | IP66 |
| Colour: | Box - Grey (RAL7035) Lid - Transparent black |
| Material: | Box - Polystyrene Lid - Polycarbonate |
| Knock-out configuration: Long sides Short sides | 1 x M32/40, 2 x M25/32, 8 x M20 1 x M32/40, 4 x M20 |
| Suitable protection against: | Weak alkali, strong alkali, alcohol, petrol, benzene, mineral oil, diesel, ammonia, vegetable oil, animal oil |
| Ambient temperature: | -25oC to +40oC |
| Weight (g): | 900g |
