Hochiki ESP Intelligent Marine Approved Weatherproof Manual Call Point with SCI (Red) (HCP-WM(SCI))
Product Details for Hochiki ESP Intelligent Marine Approved Weatherproof Manual Call Point with SCI (Red) (HCP-WM(SCI))

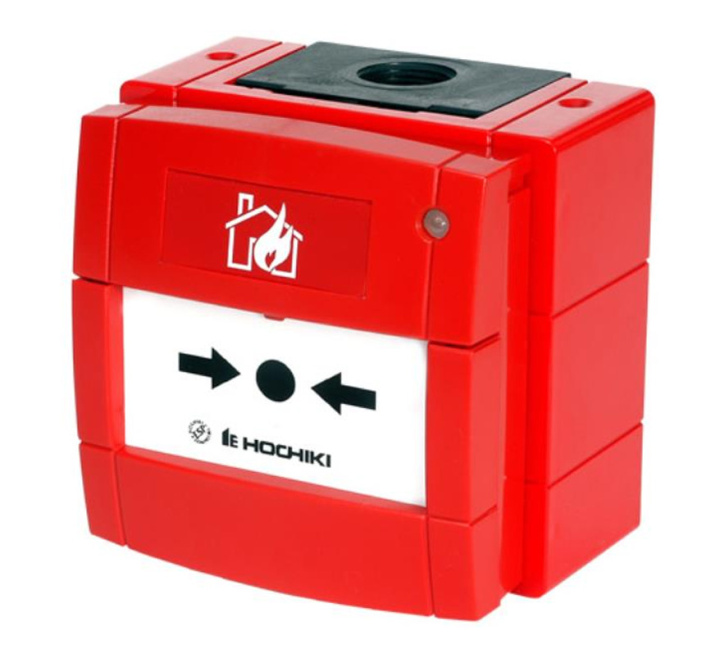

The Hochiki HCP-WM(SCI) is a Marine Approved weatherproof Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochiki's ESP analogue addressable protocol.
The unit incorporates a bi-coloured LED, which can be selected as pulsing/non-pulsing (1) for communications polling and is continuously lit when the HCP-W(SCI) is operated. In these two states the LED will show red. The LED will show amber when a short-circuit is present but will switch to red if the unit is activated.
The unit operates by pressing the EN54 compliant non-frangible (plastic) element and produces a high level ESP interrupt.
A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside.
Two terminal blocks are provided for easy connection to the loop wiring.
The unit is addressed using the TCH-B200 Hand Held Programmer for quick and reliable addressing.
Key Features of the HCP-WM(SCI) |
|---|
|
> Fast response
> Integral short-circuit isolator > Bi-coloured status LED > Non-frangible element fitted as standard (conforms to EN54) > Addressed with TCH-B200 Hand Held Programmer > Surface mounted > IP67 rated > LPCB approved to EN54 > Approved to MED by GL > GL Type approval |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | HCP-WM(SCI) |
| Product Series | Hochiki Intelligent Marine |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
FAQ’s for Hochiki ESP Intelligent Marine Approved Weatherproof Manual Call Point with SCI (Red) (HCP-WM(SCI))
Product Specification for Hochiki ESP Intelligent Marine Approved Weatherproof Manual Call Point with SCI (Red) (HCP-WM(SCI))
| Product code: | HCP-WM(SCI) |
| Description: | Hochiki Marine Approved Weatherproof Analogue Addressable Manual Call Point with Short-Circuit Isolator |
| Compatible with: | Fully compatible with Hochiki’s ESP analogue addressable protocol |
| Dimensions: | W:98mm x H:94mm x W:78mm |
| Colour / Case material: | Red / Modified Polyphenylene Oxide |
| Operating voltage: | 17 – 41 VDC |
| Lower power mode: | 180 μ (max), 100 μA (typ) |
| Quiescent current: | 350 μA (max), 250 μA (typ) |
| Alarm current: | 10.0 mA (max), 5 mA (typ) |
| Resistance in positive: | 100 mΩ when closed (max), 100 kΩ when open (min) |
| Short circuit threshold: | 430 Ω (typ) |
| Transmission method: | Digital Communication Using ESP |
| Operating temperature: | -10 °C to + 50 °C |
| Storage temperature: | -30 °C to + 70 °C |
| IP Rating: | IP67 |
| Humidity: | 95%RH - Non Condensing (at 40 °C) max. |
| Weight: | 234g |
