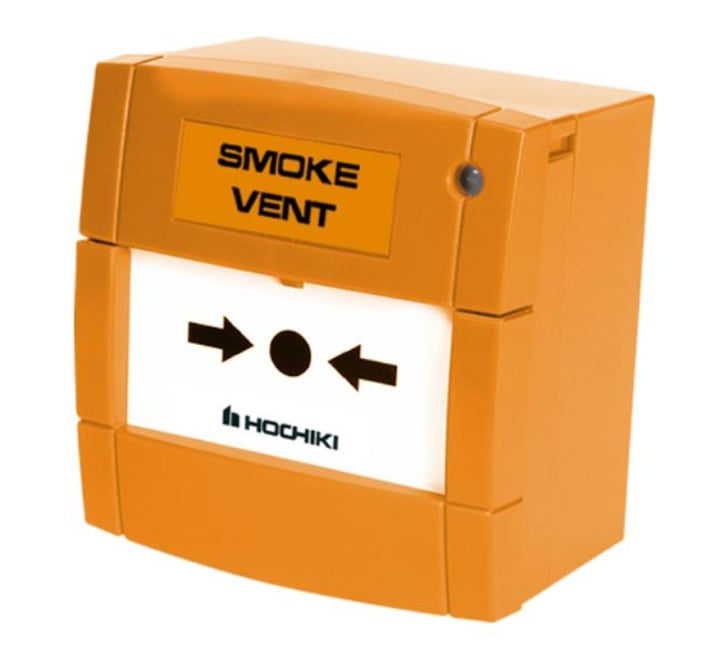

Hochiki HCP-EO(SCI) Manual Call Point with SCI "SMOKE VENT" (Orange)
SKU
HCP-EO(SCI)
£48.50
£40.42
Hochiki HCP-EO(SCI) Manual Call Point with SCI "SMOKE VENT" (Orange)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki HCP-EO(SCI) Manual Call Point with SCI "SMOKE VENT" (Orange)
The Hochiki HCP-EO(SCI) is an Analogue Addressable orange call-point based upon the industry standard KAC world series housing and features easy to install, push-fit wiring terminals
The unit can support either a ‘Frangible Glass’ element or a ‘Non Frangible Plastic’ element.
Key Features of the HCP-EO(SCI) |
|---|
|
> Terminals can accommodate up to a 2.5 mm solid conductor
> Orange casing > Features an integral SCI |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | HCP-EO(SCI) |
| Product Series | Hochiki ESP |
| Colour | Orange |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki HCP-EO(SCI) Manual Call Point with SCI "SMOKE VENT" (Orange)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki HCP-EO(SCI) Manual Call Point with SCI "SMOKE VENT" (Orange)
| Description | Hochiki Analogue Addressable Manual Call Point with SCI |
| Product Code | HCP-EO(SCI) |
| Dimensions (mm): | W 89 x H 93 x D 59.5 (incl. Back Box) |
| IP Rating: | IP24 |
| Operating voltage: | 17 - 41Vdc |
| Low power mode: | 180 μA (max), 100 μA (typ) |
| Quiescent current: | 350 μA (max), 250 μA (typ) |
| Alarm current: | 10.0 mA (max), 5 mA (typ) |
| Resistance in positive: | 100 mΩ when closed (max), 100 kΩ when open (min) |
| Short circuit threshold (typ.): | 430 Ω |
| Transmission method: | Digital Communication Using ESP |
| Operating temperature: | -10oC to +50oC |
| Storage temperature: | -30oC to +70oC |
| Relative humidity: | 95% RH at 40oC non-condensing |
| Colour / material: | Orange / Modified Polyphenylene Oxide |
| Weight (g): | 161g (incl. back box) |
