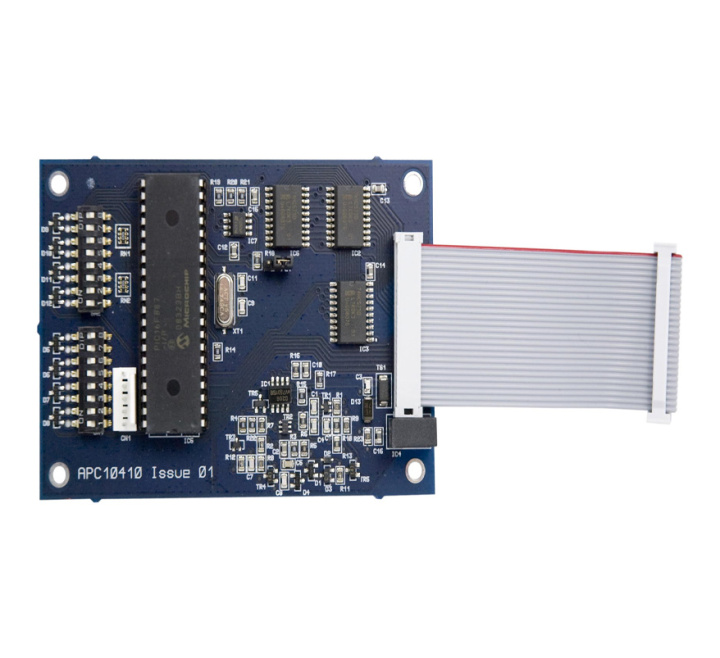

Hochiki FIRElink APIC Addressable Interface Card (FL-APIC)
SKU
FL-APIC
£250.26
£208.55
Hochiki FL-APIC FIRElink APIC Interface Card
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki FIRElink APIC Addressable Interface Card (FL-APIC)
The Hochiki FL-APIC is an addressable protocol interface card used to decode and relay FIRElink detector information directly to a Hochiki ESP-compatible fire control panel.
Key Features of the FL-APIC |
|---|
|
> Supports both single and multi mode operation
> Full address range (1-127) > Compatible with all FIRElink detectors and command modules |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | FL-APIC |
| Product Series | FIRElink |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki FIRElink APIC Addressable Interface Card (FL-APIC)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki FIRElink APIC Addressable Interface Card (FL-APIC)
| Description | Hochiki FIRElink Interface Card |
| Product Code | FL-APIC |
| Dimensions: | W:70mm x H:100mm x D:25mm (PCB assembly) |
| Supply Voltage: | Loop voltage (low): 17 - 31V dc Loop pulse voltage: 7 - 9V dc |
| Current Consumption: | Quiescent: 90uA Max Loop current (device response): 22mA +- 20% |
| Zero point value range: | 61 |
| Operating temperature: | -10°C - +50°C |
| Storage temperature: | -30°C - +60°C ( <80% RH at 60°C) |
| Relative humidity: | 95% RH at 40°C |
| Weight: | 65g |
