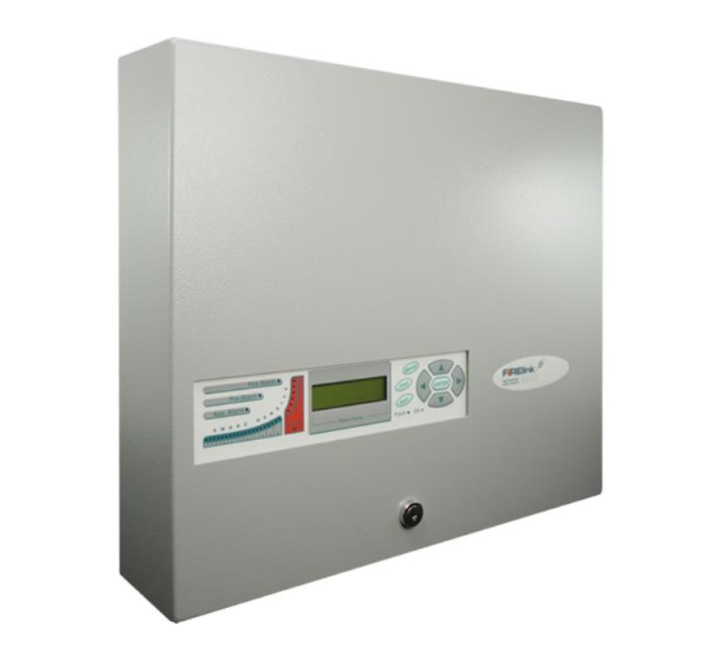

Hochiki FIRELINK-400 4 Pipe Aspirating Smoke Detector
SKU
FIRELINK-400
£2,410.61
£2,008.84
Hochiki FIRELINK-400 4 Pipe Aspirating Smoke Detector
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki FIRELINK-400 4 Pipe Aspirating Smoke Detector
The Hochiki FIRElink-400 is designed to provide very high-sensitivity smoke detection using an aspirating technique. A unique sensing technology ensures that the detector operates at optimum sensitivity for the protected environment, without the need for complex set-up.
The detector is available in three formats, the standard detector (FIRElink-400), the standard detector plus Command Module (FIRElink-400CM) and a standalone Command Module (FIRElink-CM). The Command Module variants provide a single location display, control and interfacing option for systems of up to 127 detectors and allow global programming of all detector functions simultaneously.
Key Features of the FIRELINK-400 |
|---|
|
> Volt-free Fire-1 and Fault relay outputs are provided for remote monitoring by local fire detection or BMS systems
> High sensitivity provided by laser-based forward light scatter for reliable early warning > Four sampling pipes up to 200m (aggregate) in length (still air) > False alarms reduced by unique laser sensing technology - able to discriminate against dust > RS485 communications built in as standard for networking and remote communications |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | FIRELINK-400 |
| Product Series | FIRElink |
| Primary Power Source | 24V DC |
| System Type | ASD |
| Detectable Medium | Smoke |
| Warranty | 3 Years |
| Sensor Type | Optical |
Write Your Own Review
FAQ’s for Hochiki FIRELINK-400 4 Pipe Aspirating Smoke Detector
No questions yet. Be the first to ask the question!
Product Specification for Hochiki FIRELINK-400 4 Pipe Aspirating Smoke Detector
| Description | Hochiki High Sensitivity Air Sampling Smoke Detector |
| Product Code | FIRElink-400 (Standard Detector) |
| Dimensions: | W:427mm x H:372mm x D:95mm |
| Supply Voltage: | 21.6 - 26.4 VDC |
| Current Consumption: | 470 mA @ 24 VDC at fan speed 8 |
| Relay Contact Rating: | 500 mA @ 30 V |
| Operating Temperature Range: | 0 to +38 °C (UL268), -10 to + 60 °C (CEA4022) |
| Operating Humidity Range: | 0 - 90% non-condensing |
| Measurement Range (obs/m): | 0.03% to 25% Full Scale Deflection (FSD) 0.0015% to 25% Sensitivity Resolution |
| Detection Principle: | Laser light scattering mass detection and particle evaluation |
| Particle Sensitivity Range: | 0.003 μ to 10 μ |
| Dust Discrimination Principle: | 3D3 Laser Dust Discrimination (LDD) |
| Maximum Single Sampling Pipe Length/Diameter: | 100m / ¾” nominal bore (27 mm O/D) (EN54-20 performances) |
| Total Sampling Pipe Maximum: | 200 m @ 100 sampling holes |
| Alarm Levels: | 4 (Aux, Pre-alarm, Fire 1 and Fire 2) |
| IP rating: | IP50 |
| Sampling Pipe Inlets: | 4 on top, 4 at rear |
| Exhaust Air Pipe Outlets: | 1 on top, 1 at rear |
| Weight: | 5.2kg |
