Temporarily Unavailable
Due to a supply chain delay, Ekho wireless products are currently unavailable until further notice.

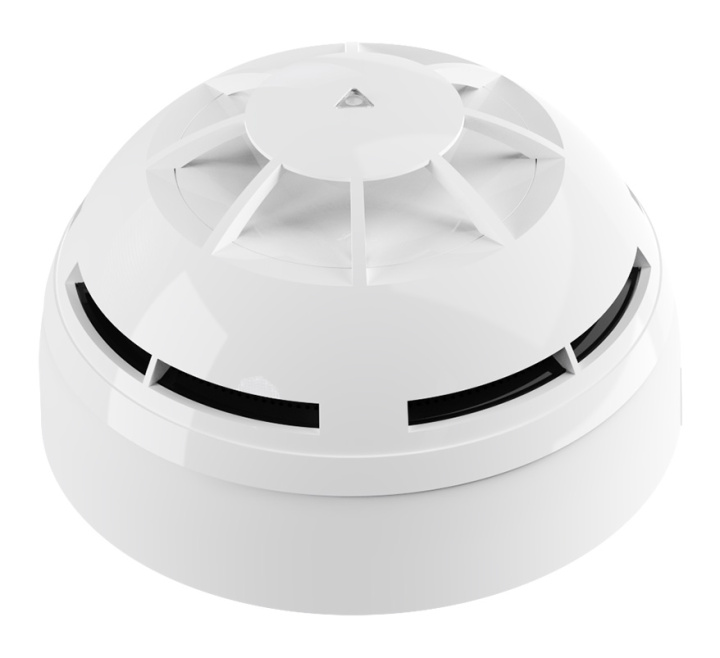

Hochiki Ekho Hybrid Wireless Multi-Sensor Detector (EK-WL8-OH)
SKU
EK-WL8-OH
Hochiki Ekho Hybrid Wireless Multi-Sensor Detector (EK-WL8-OH)
Discontinued
Alternative Products
Product Details for Hochiki Ekho Hybrid Wireless Multi-Sensor Detector (EK-WL8-OH)
The Hochiki EK-WL8-OH is the latest in wireless multi-criteria sensor technology. It is a fully intelligent device and compatible with the Ekho wireless Translator and Expander modules.
The sensor combines both smoke and heat detection technologies (A1R) for improved performance, which can contribute to reducing unwanted alarms. Utilising well-proven adaptive radio signal processing algorithms ensures that the highest levels of life safety and system reliability are achieved.
Key Features of the EK-WL8-OH |
|---|
|
> Approved to EN54-5,7,25 & 29
> RED compliant > Internal multi-sensor algorithm processing optimises performance > Tamper switch > Up to 10 years battery life (dependent on operational usage) > Utilises standard low-cost lithium battery technology > Bi-directional wireless communications > Self-optimising wireless amplitude and frequency > Designed for use with Ekho Translator and Expander modules |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | EK-WL8-OH |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | Hochiki ESP |
| Detectable Medium | Smoke, Heat |
| Colour | White |
| Warranty | 3 Years |
FAQ’s for Hochiki Ekho Hybrid Wireless Multi-Sensor Detector (EK-WL8-OH)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki Ekho Hybrid Wireless Multi-Sensor Detector (EK-WL8-OH)
| Description | Hochiki Hybrid Wireless Multi-Sensor |
| Product Code | EK-WL8-OH |
| Dimensions: | Dia:111mm x H:57mm |
| Operating frequency range: | 866 - 870 MHz |
| Communication range (in open air) : | 1200 m |
| Modulation type: | GFSK |
| Operating frequency channels: | 6 |
| Max. radiated power: | ≤ 25 mW |
| Operating modes: | Smoke only; A1R Heat only; Smoke and A1R Heat combined |
| Operating temperature: | -10 °C to + 55 °C |
| Humidity (max): | 95% RH - Non Condensing |
| Power supply (Dual 3V lithium batteries) | 1 x Primary cell (CR123A: 1.2Ahr, up to 10 years primary battery life) 1 x Secondary cell (CR2032A): 0.24Ahr, 3 months secondary battery life) |
| Approvals: | BS EN 54-5: Heat Point Detectors, BS EN 54-7 Smoke Detectors, BS EN54-29: Multi-sensor fire detectors, BS EN54-25: Components using radio links, CEA4021 |
| Weight: | 160g |
