Temporarily Unavailable
Due to a supply chain delay, Ekho wireless products are currently unavailable until further notice.

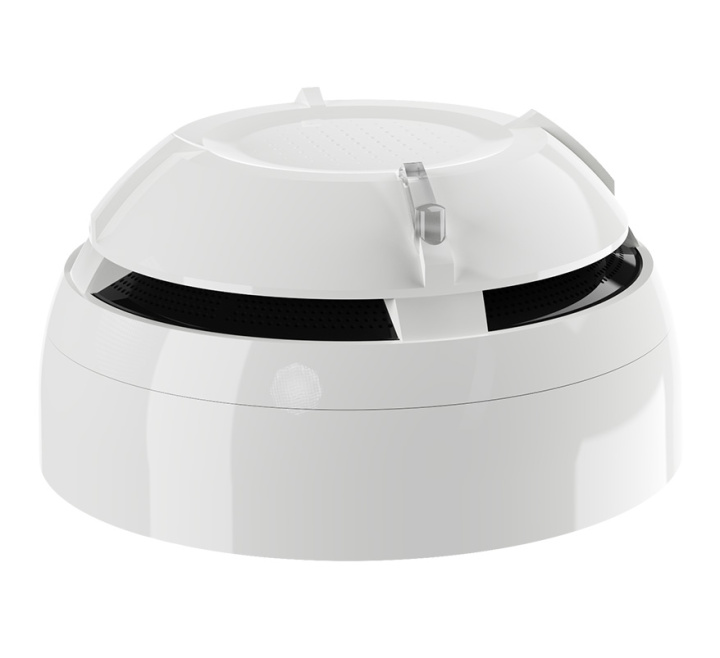

Hochiki Ekho Hybrid Wireless Optical Smoke Detector (EK-WL8-O)
SKU
EK-WL8-O
Hochiki Ekho Hybrid Wireless Optical Smoke Detector (EK-WL8-O)
Discontinued
Alternative Products
Product Details for Hochiki Ekho Hybrid Wireless Optical Smoke Detector (EK-WL8-O)
The Hochiki EK-WL8-O wireless optical smoke sensor is the latest in wireless smoke sensor technology. It is a fully intelligent device and compatible with the Ekho wireless Translator and Expander modules.
The sensor utilises optical smoke detection technologies and algorithms for improved performance, which can contribute to reducing unwanted alarms. Utilising well-proven adaptive radio signal processing algorithms ensure the highest levels of life safety and system reliability are achieved.
Key Features of the EK-WL8-O |
|---|
|
> Approved to EN54-7 & 25
> RED compliant > Internal algorithm processing for optimal performance > Tamper switch > Up to 10 years battery life (dependent on operational usage) > Utilises standard low cost lithium battery technology > Bi-directional wireless communications > Self-optimising wireless amplitude and frequency > Designed for use with Ekho Translator and Expander modules |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | EK-WL8-O |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | Hochiki ESP |
| Sensor Type | Optical |
| Detectable Medium | Smoke |
| Warranty | 3 Years |
FAQ’s for Hochiki Ekho Hybrid Wireless Optical Smoke Detector (EK-WL8-O)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki Ekho Hybrid Wireless Optical Smoke Detector (EK-WL8-O)
| Description | Hochiki Hybrid Wireless Optical Smoke Sensor |
| Product Code | EK-WL8-O |
| Dimensions: | Dia:111mm x H:57mm |
| Operating frequency range: | 868 - 870 MHz |
| Communication range (in open air) : | 1200 m |
| Modulation type: | GFSK |
| Operating frequency channels: | 6 |
| Max. radiated power: | ≤ 25 mW |
| Operating temperature: | -10 °C to + 55 °C |
| Humidity (max): | 95% RH - Non Condensing |
| Power supply (Dual 3V lithium batteries) | 1 x Primary cell (CR123A: 1.2Ahr, up to 10 years primary battery life) 1 x Secondary cell (CR2032): 1.2Ahr, 8 months secondary battery life) |
| Approvals: | BS EN 54-7 Smoke Detectors BS EN54-25: Components using radio links |
