Temporarily Unavailable
Due to a supply chain delay, Ekho wireless products are currently unavailable until further notice.

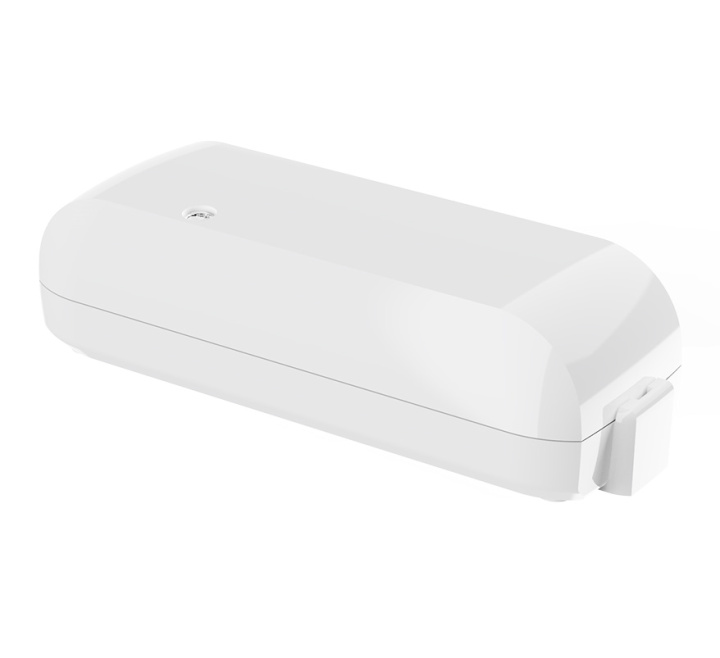

Hochiki Ekho Hybrid Wireless Single Input Module (EK-WL8-IN)
SKU
EK-WL8-IN
Hochiki Ekho Hybrid Wireless Single Input Module (EK-WL8-IN)
Discontinued
Alternative Products
Product Details for Hochiki Ekho Hybrid Wireless Single Input Module (EK-WL8-IN)
The Hochiki EK-WL8-IN is a wireless Single Channel Input Module providing a convenient and cost-effective solution for monitoring third-party equipment.
The module is also controllable from the Fire Control Panel via the cause and effect programming and offers the same level of flexibility as a standard addressable module.
Optional back box available.
Key Features of the EK-WL8-IN |
|---|
|
> Approved to EN54-18 and 25
> RED compliant > Monitored Input > Bi-directional wireless communication > Self optimising wireless amplitude and frequency > Tamper Switch > Up to 10 years battery life (dependent on operational usage) |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | EK-WL8-IN |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
FAQ’s for Hochiki Ekho Hybrid Wireless Single Input Module (EK-WL8-IN)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki Ekho Hybrid Wireless Single Input Module (EK-WL8-IN)
| Description | Hochiki Hybrid Wireless Single Input Module (optional backbox available separately EK-BOX-02) |
| Product Code | EK-WL8-IN |
| Dimensions: | W:37mm x H:109mm x D:30mm (without backbox) |
| Operating frequency range: | 866 - 870 MHz |
| Communication range (in open air) : | 1200 m |
| Modulation type: | GFSK |
| Operating frequency channels: | 6 |
| Max. radiated power: | ≤ 25 mW |
| Time period between wireless signal transmissions: | 2 minutes |
| Operating temperature: | -10 °C to + 55 °C |
| Humidity (max): | 95% RH - Non Condensing |
| Power supply: (Dual 3V lithium batteries) | 1 x Primary cell (CR123A), 1.2Ahr, Up to 10 years primary battery life) 1 x Secondary cell (CR2032A), 0.24Ahr, 3 months secondary battery life |
| Approvals: | EN54-18 Input/Output Devices EN54-25 Components using radio links |
| Weight: | 70g |
