Temporarily Unavailable
Due to a supply chain delay, Ekho wireless products are currently unavailable until further notice.

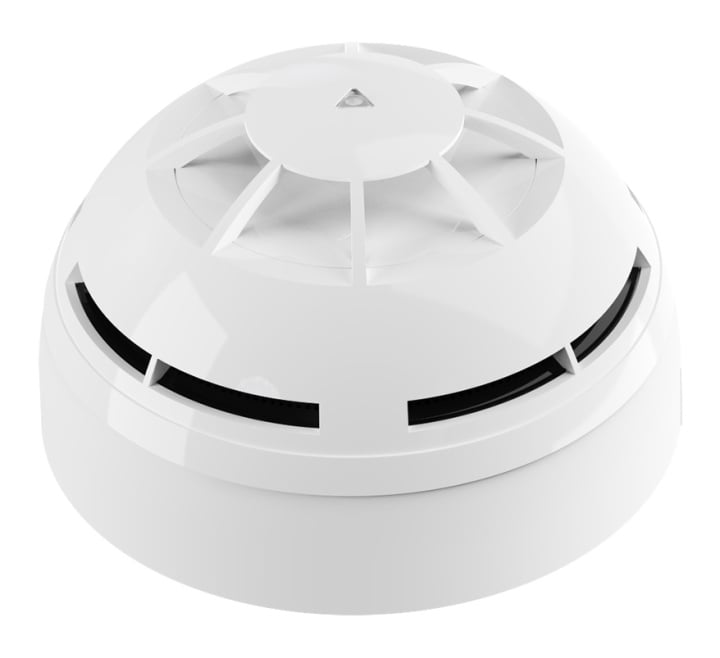

Hochiki Ekho Hybrid Wireless Heat Detector with Sounder (EK-WL8-HS)
SKU
EK-WL8-HS
Hochiki Ekho Hybrid Wireless Heat Detector with Sounder (EK-WL8-HS)
Discontinued
Alternative Products
Product Details for Hochiki Ekho Hybrid Wireless Heat Detector with Sounder (EK-WL8-HS)
The EK-WL8-HS is a wireless A1R heat sensor that incorporates a 4 tone sounder. It is a fully intelligent device and compatible with the Ekho wireless Translator and Expander modules.
The sensor is designed for installations where smoke detection technology is not suitable. The well-proven adaptive radio signal processing algorithms ensure the highest levels of life safety and system reliability are achieved.
An in-built magnet test allows easy activation to verify correct functionality and response.
Key Features of the EK-WL8-HS |
|---|
|
> Approved to EN54-3, 5 and 25
> RED compliant > Sounder Incorporated > 4 selectable Tones > Internal algorithm processing for optimal performance > Tamper switch > Up to 10 years battery life (dependent on operational usage) > Utilises standard low-cost lithium battery technology > Bi-directional wireless communications > Self optimising wireless amplitude and frequency > Compatible with Ekho Translator/Expander modules |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | EK-WL8-HS |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | Hochiki ESP |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Colour | White |
| Warranty | 3 Years |
FAQ’s for Hochiki Ekho Hybrid Wireless Heat Detector with Sounder (EK-WL8-HS)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki Ekho Hybrid Wireless Heat Detector with Sounder (EK-WL8-HS)
| Ordering code | EK-WL8-HS |
| Operating frequency range | 866 - 870 MHz |
| Communication range (in open air) | 1200 m |
| Modulation type | GFSK |
| Operating frequency channels | 6 |
| Max. radiated power | ≤ 25 mW |
| Sound pressure level at 1m | >96 dB(A) for all modes |
| Class A1R | 58 °C max. |
| Operating temperature range | - 10 °C to + 55 °C |
| Max. tolerated humidity (non condensing) | 95% RH |
| Dimensions (mm) | 200 / Ø 111 x H 57 |
| Power supply (Dual 3V lithium batteries) | Primary cell: 1 x CR123A - 1.2 Ahr - Up to 10 years primary battery life Secondary cell: 1 x CR2032 - 0.24 Ahr - 3 month battery life |
