Temporarily Unavailable
Due to a supply chain delay, Ekho wireless products are currently unavailable until further notice.

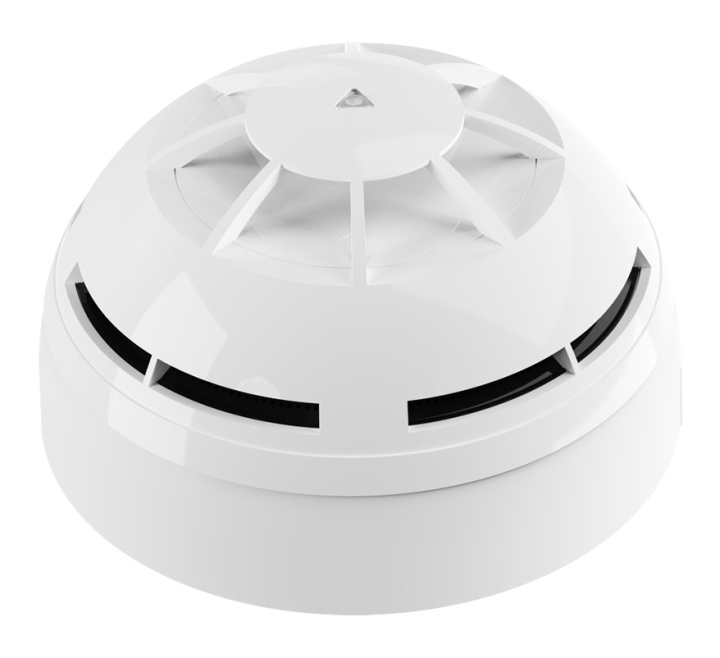

Hochiki Ekho Hybrid Wireless Heat Detector (EK-WL8-H)
SKU
EK-WL8-H
Hochiki Ekho Hybrid Wireless Heat Detector (EK-WL8-H)
Discontinued
Alternative Products
Product Details for Hochiki Ekho Hybrid Wireless Heat Detector (EK-WL8-H)
The Hochiki EK-WL8-H is a wireless A1R heat sensor. It is a fully intelligent device and compatible with the Ekho wireless Translator and Expander modules.
The sensor is designed for installations where smoke detection technology is not suitable. The well-proven adaptive radio signal processing algorithms ensure the highest levels of life safety and system reliability are achieved.
Key Features of the EK-WL8-H |
|---|
|
> Approved to EN54-5 and 25
> RED compliant > Internal algorithm processing for optimal performance > Tamper switch > Up to 10 years battery life (dependent on operational usage) > Utilises standard low-cost lithium battery technology > Bi-directional wireless communications > Self-optimising wireless amplitude and frequency > Designed for use with Ekho Translator and Expander modules |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | EK-WL8-H |
| Primary Power Source | Longlife Batteries (Lithium) |
| System Type | Wireless |
| Protocol Compatibility | Hochiki ESP |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Warranty | 3 Years |
FAQ’s for Hochiki Ekho Hybrid Wireless Heat Detector (EK-WL8-H)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki Ekho Hybrid Wireless Heat Detector (EK-WL8-H)
| Description | Hochiki Hybrid Wireless A1R Heat Sensor |
| Product Code | EK-WL8-H |
| Dimensions: | Dia:111mm x H:65mm |
| Operating frequency range: | 866 - 870 MHz |
| Communication range (in open air) : | 1200 m |
| Modulation type: | GFSK |
| Operating frequency channels: | 6 |
| Max. radiated power: | ≤ 25 mW |
| Class A1R: | 58 °C max. |
| Operating temperature: | -10 °C to + 55 °C |
| Humidity (max): | 95% RH - Non Condensing |
| Power supply (Dual 3V lithium batteries) | 1 x Primary cell (CR123A: 1.2Ahr, up to 10 years primary battery life) 1 x Secondary cell (CR2032A): 0.24Ahr, 3 months secondary battery life) |
| Approvals: | BS EN 54-5: Heat Point Detectors, BS EN54-25: Components using radio links |
| Weight: | 160g |
