Hochiki DFJ-CE3 Conventional Fixed Temperature Heat Detector 90°C - Ivory Case
SKU
DFJ-CE3
£25.24
£21.03
Hochiki DFJ-CE3 Conventional Fixed Temperature Heat Detector 90°C - Ivory Case
In Stock
Product Details for Hochiki DFJ-CE3 Conventional Fixed Temperature Heat Detector 90°C - Ivory Case

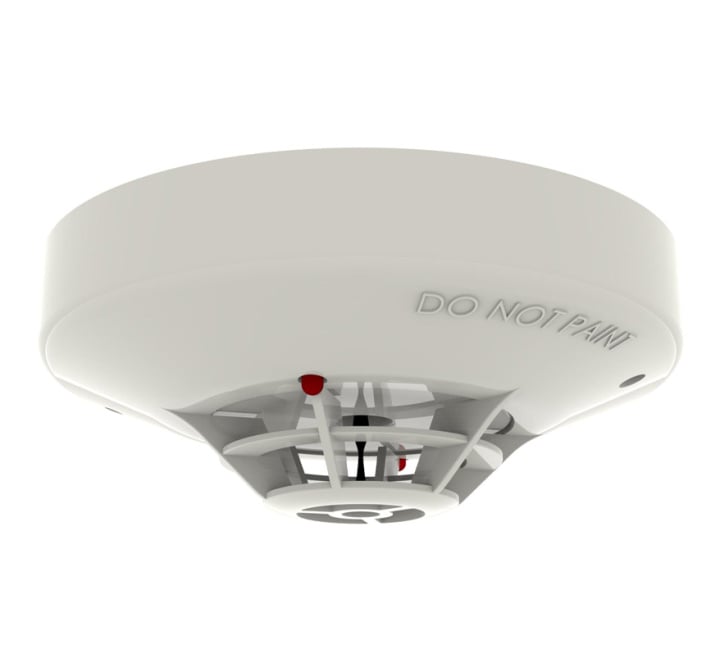

The Hochiki DFJ-CE3 is a 90° C Fixed Temperature Heat Detector using a thermistor and linearising circuit to provide an accurate linear response Heat Detector. A third terminal provides integral remote indicator output.
The DFJ-CE3 is ideal for use where medium ambient temperatures exist, such as drying rooms or where Smoke Detectors are unsuitable because of the presence of steam or cooking fumes such as in a kitchen.
The DFJ-CE3 is supported by a wide range of bases for different applications and these are supported on the majority of conventional systems.
Key Features of the DFJ-CE3 |
|---|
|
> Electronic linear heat detection
> Remote Indicator output > Wide voltage range (9.5 ~ 30 V dc) > Twin fire LEDs allow 360 degree viewing > Fixed Temperature Detector > Full range of mounting bases > Approved by LPCB & VdS > Also available in white |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | DFJ-CE3 |
| Product Series | Hochiki CDX |
| Colour | Ivory |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Detectable Medium | Heat |
| Warranty | 3 Years |
| Sensor Type | Thermistor |
Write Your Own Review
FAQ’s for Hochiki DFJ-CE3 Conventional Fixed Temperature Heat Detector 90°C - Ivory Case
No questions yet. Be the first to ask the question!
Product Specification for Hochiki DFJ-CE3 Conventional Fixed Temperature Heat Detector 90°C - Ivory Case
| Description | Hochiki Conventional Fixed Temperature Heat Detector (90 °C) |
| Product Code | DFJ-CE3 |
| Dimensions (mm): | Dia: 100 x H 38 |
| Operating voltage: | 9.5 – 30 VDC |
| Quiescent current: | 35 μA |
| Maximum current in alarm: | 40 mA (typical) |
| Remote indicator drive (typical): | 20 mA (max) / 9.5 - 14 mA |
| Approvals: | LPCB, VdS (G204047), EN 54-5:2017 + A1:2018 |
| IP Rating: | IP63 |
| Operating temperature: | -10oC to +50oC |
| Storage temperature: | -30 °C to +70 °C |
| Maximum humidity: | 95% RH - Non-condensing (at 40 °C) |
| Colour / Case material: | Ivory / Modified Polycarbonate |
| Compatible bases: | YBN-R6, YBN-R/6SK, YBO-R/6R, YBO-R/6RS, YBO-R/6RN, YBO-R/6PA |
| Base fixing centres (mm): | 48 ~ 74 |
| Weight: | 76g |
