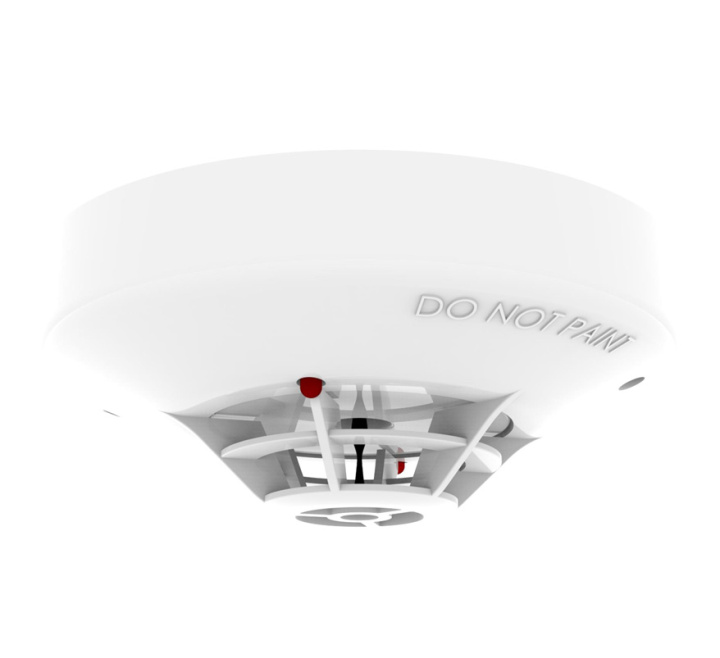

Hochiki DFJ-AE3(WHT) Conventional Fixed Temperature Heat Detector 60°C - White Case
SKU
DFJ-AE3(WHT)
£22.75
£18.96
Hochiki DFJ-AE3(WHT) Conventional Fixed Temperature Heat Detector 60°C - White Case
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki DFJ-AE3(WHT) Conventional Fixed Temperature Heat Detector 60°C - White Case
The Hochiki DFJ-AE3(WHT) is a 60 °C Fixed Temperature Heat Detector using a thermistor and linearising circuit to provide an accurate linear response Heat Detector. A third terminal provides integral remote indicator output.
The DFJ-AE3(WHT) is ideal for use where medium ambient temperatures exist, such as drying rooms or where Smoke Detectors are unsuitable because of the presence of steam or cooking fumes such as in a kitchen.
The DJF-AE3(WHT) is supported by a wide range of bases for different applications and these are supported on the majority of conventional systems. A third terminal provides remote indicator output.
Key Features of the DFJ-AE3(WHT) |
|---|
|
> Electronic linear heat detection
> Remote Indicator output > Wide voltage range (9.5 ~ 30 V dc) > Twin fire LEDs allow 360 degree viewing > Fixed Temperature Detector > Full range of mounting bases > Approved by LPCB |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | DFJ-AE3(WHT) |
| Product Series | Hochiki CDX |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Detectable Medium | Heat |
| Warranty | 3 Years |
| Sensor Type | Thermistor |
Write Your Own Review
FAQ’s for Hochiki DFJ-AE3(WHT) Conventional Fixed Temperature Heat Detector 60°C - White Case
No questions yet. Be the first to ask the question!
Product Specification for Hochiki DFJ-AE3(WHT) Conventional Fixed Temperature Heat Detector 60°C - White Case
| Description | Hochiki Conventional Fixed Temperature Heat Detector (60 °C) |
| Product Code | DFJ-AE3(WHT) |
| Dimensions (mm): | Dia: 100 x H 38 |
| Operating voltage: | 9.5 – 30 VDC |
| Quiescent current: | 35 μA |
| Maximum current in alarm: | 40 mA (typical) |
| Remote indicator drive (typical): | 20 mA (max) / 9.5 - 14 mA |
| Approvals: | LPCB, VdS (G204046) |
| IP Rating: | IP63 |
| Operating temperature: | -10oC to +50oC |
| Storage temperature: | -30 °C to +70 °C |
| Maximum humidity: | 95% RH - Non-condensing (at 40 °C) |
| Colour / Case material: | White / Modified Polycarbonate |
| Compatible bases: | YBN-R6, YBN-R/6SK, YBO-R/6R, YBO-R/6RS, YBO-R/6RN, YBO-R/6PA |
| Base fixing centres (mm): | 48 ~ 74 |
| Weight: | 76g |
