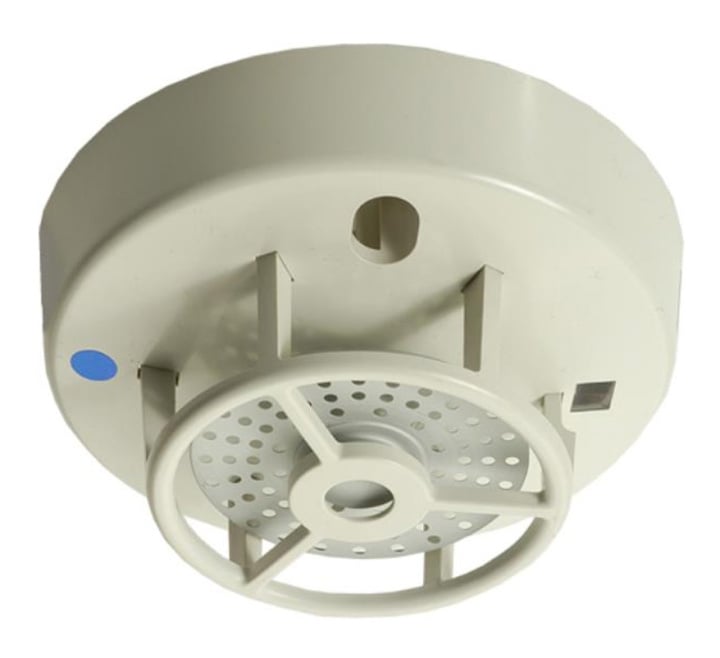

Hochiki DFG-60BLKJ Conventional Waterproof Heat Detector 60°C (No Base Required) - Ivory Case
- Buy 10 for £47.99 £39.99 each and save 2%
- Buy 20 for £47.23 £39.36 each and save 3%
- Buy 50 for £46.49 £38.74 each and save 5%
The Hochiki DFG-60BLKJ is a 60 °C Fixed Temperature Waterproof Heat Detector, the detector uses a bi-metallic strip to sense temperature change, therefore consuming minimal standby current and providing high reliability.
The DFG-60BLKJ is particularly suited to environments, which are exposed to high levels of condensation or are hosed down. The detector has a wide operating margin allowing it to respond to both slow and fast increases in temperature; it can also sense temperature reliably in a horizontal or vertical position.
The DFG-60BLKJ requires no mounting base as short flying leads are provided for connection to the conventional zone and remote LED. If a back box is required, then the DFG-60BLKJ can be mounted using the Hochiki MBB-1 Marine Approved back Box.
Key Features |
---|
> Waterproof design rated to IP67 > Low profile shape > Utilises a bi-metallic strip to sense temperature change > No Mounting base required > Minimal standby current > Approved by LPCB & VdS |
Manufacturer | Hochiki |
---|---|
MPN | DFG-60BLKJ |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
Description | Hochiki Conventional Waterproof Heat Detector |
Product Code | DFG-60BLKJ |
Dimensions (mm): | Dia: 98 x H 45 |
Operating voltage: | 15 – 30 VDC (Nominal rating 24 V dc) |
Quiescent current (typ): | Minimal |
Maximum current in alarm: | 50 mA at 24 V dc |
Fixing centres: | 70 mm |
Approvals: | LPCB, VdS (G204048) |
IP Rating: | IP67 |
Operating temperature: | -10oC to +40oC |
Storage temperature: | -30 °C to +70 °C |
Colour / Case material: | Ivory / Modified Polycarbonate |
Weight: | 80g |
