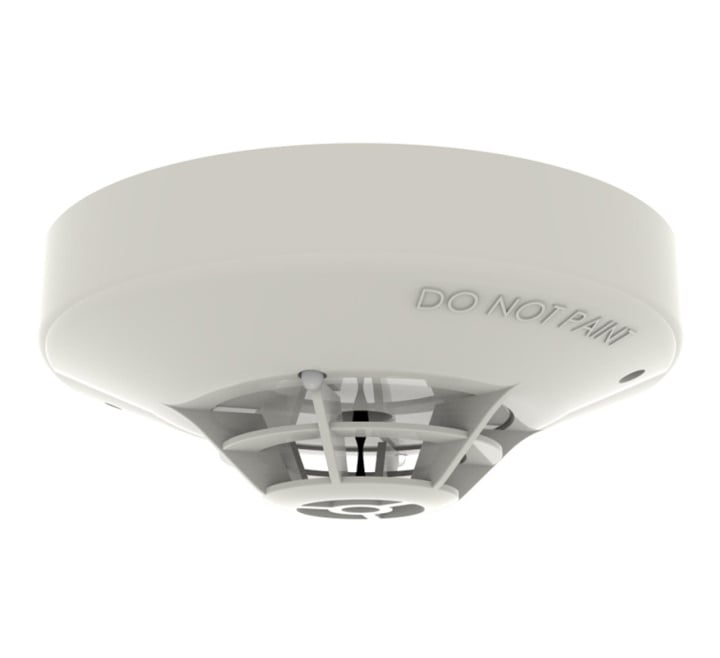

Hochiki DCD-AE3 Conventional Combined Heat Detector 60°C - Ivory Case
SKU
DCD-AE3
£16.39
£13.66
Hochiki DCD-AE3 Conventional Combined Heat Detector 60°C - Ivory Case
In Stock
Product Details for Hochiki DCD-AE3 Conventional Combined Heat Detector 60°C - Ivory Case
The Hochiki DCD-AE3 is a Rate of Rise Heat Detector with a 60°C fixed temperature element using a thermistor and linearising circuit to provide an accurate linear response Heat Detector.
The DCD-AE3 is ideal for use where medium ambient temperatures exist, such as drying rooms or where Smoke Detectors are unsuitable because of the presence of steam or cooking fumes such as in a kitchen/galley.
The DCD-AE3 is supported on the majority of conventional systems.
A third terminal provides remote indicator output.
Key Features of the DCD-AE3 |
|---|
|
> Electronic linear heat detection
> Remote indicator output > Wide voltage range (9.5 ~ 30 VDC) > Twin fire LEDs allow 360 degree viewing > Approved by LPCB > GL Type approval |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | DCD-AE3 |
| Product Series | Hochiki CDX |
| Colour | Ivory |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Detectable Medium | Heat |
| Warranty | 3 Years |
| Sensor Type | Thermistor |
Write Your Own Review
FAQ’s for Hochiki DCD-AE3 Conventional Combined Heat Detector 60°C - Ivory Case
No questions yet. Be the first to ask the question!
Product Specification for Hochiki DCD-AE3 Conventional Combined Heat Detector 60°C - Ivory Case
| Description | Hochiki Conventional Combined RoR & Fixed Temperature Heat Detector (60 deg. C) |
| Product Code | DCD-AE3 |
| Dimensions (mm): | Dia: 100 x H 38 |
| Operating voltage: | 9.5 – 30 VDC |
| Quiescent current (typ): | 35 μA |
| Maximum current alarm: | 40 mA |
| Remote indicator drive: | 20 mA (max) / 9.5-14 mA (typ) |
| Base fixing centres: | 48 ~ 74 mm |
| Approvals: | LPCB, VdS (G204044) |
| IP Rating: | IP63 |
| Operating temperature: | -10oC to +50oC |
| Storage temperature: | -30 °C to +70 °C |
| Maximum humidity: | 95% RH - Non-condensing (at 40°C) |
| Colour / Case material: | Ivory / Polycarbonate |
| Compatible bases: | YBN-R6, YBN-R/6SK, YBO-R/6R, YBO-R/6RS, YBO-R/6RN, YBO-R/6PA |
| Weight: | 76g |
