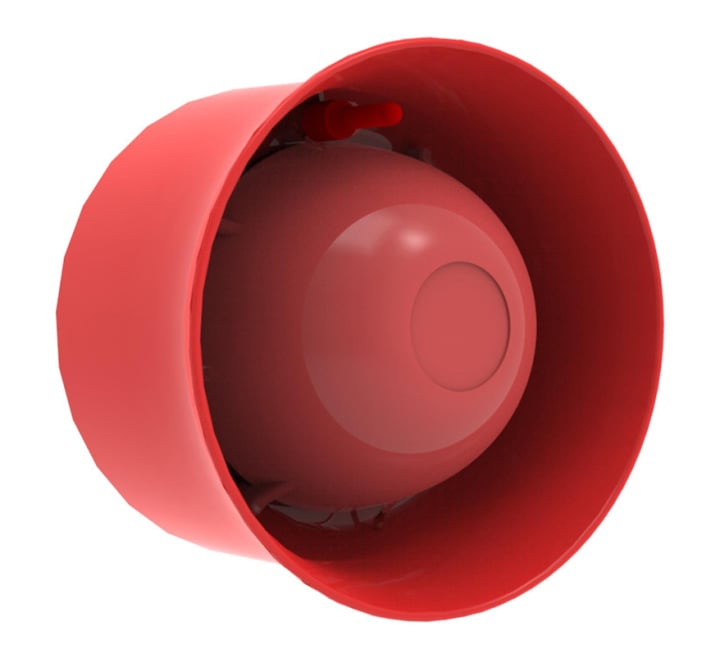

Hochiki CHQ-WS2 Addressable Wall Sounder - Red Case (No Base)
SKU
CHQ-WS2
£41.74
£34.78
Hochiki CHQ-WS2 Addressable Wall Sounder - Red Case (No Base)
Limited Stock
Product Details for Hochiki CHQ-WS2 Addressable Wall Sounder - Red Case (No Base)
The Hochiki CHQ-WS2 is an addressable loop-powered Wall Sounder innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption. The unit is designed to fit to the Standard Base (YBO-R/3(RED) or the Isolator Base (YBO-R/SCI). The sounder is IP rated to IP21 for internal use but it can be made weatherproof by utilising the WS2-WPK Weatherproof Kit, which consists of a specialised back box and gasket set.
Also incorporates an auto-shutdown mode which allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, ideal for minimising noise pollution.
Key Features of the CHQ-WS2 |
|---|
|
> Loop Powered
> Single Loop Address - addressed via the TCH-B200 Hand Held Programmer > Variable Sound Output 90 ~ 102dB(A) output at 1 m > Fits HFP Standard or Isolator Base > Weatherproof Kit available > 51 User-Selectable Tones (all tones EN54-3 compatible) > Approved by LPCB and VdS |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CHQ-WS2 |
| Product Series | Hochiki ESP |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki CHQ-WS2 Addressable Wall Sounder - Red Case (No Base)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki CHQ-WS2 Addressable Wall Sounder - Red Case (No Base)
| Description | Hochiki Analogue Wall Sounder |
| Product Code | CHQ-WS2 |
| Dimensions: | W:112mm x H:112mm x D:67mm |
| Operating voltage: | 17 - 41 VDC |
| Quiescent current (typ): | 150 μA |
| Sounding curent (typ): | 2 mA (90 dB(A) (±2 dB(A)) @ 1 m) ~ 8 mA (102 dB(A) (±2 dB(A)) @ 1 m) |
| Sound output (@ 1m): | 90 ~ 102 dB(A) (±2 dB(A)) @ 24 VDC or above |
| No. of tones: | 51 |
| Tone frequency range: | 300 Hz ~ 2850 Hz |
| Operating temperature range: | -10 °C to + 50 °C |
| Storage temperature range: | -30°C to +70°C |
| Maximum humidity: | 95% RH - Non Condensing (at 40°C) |
| Colour/Case material: | Red / PC ABS |
| IP Rating: | IP21 |
| Base fixing centres: | 48 - 74 mm |
| Weight: | 152g |
