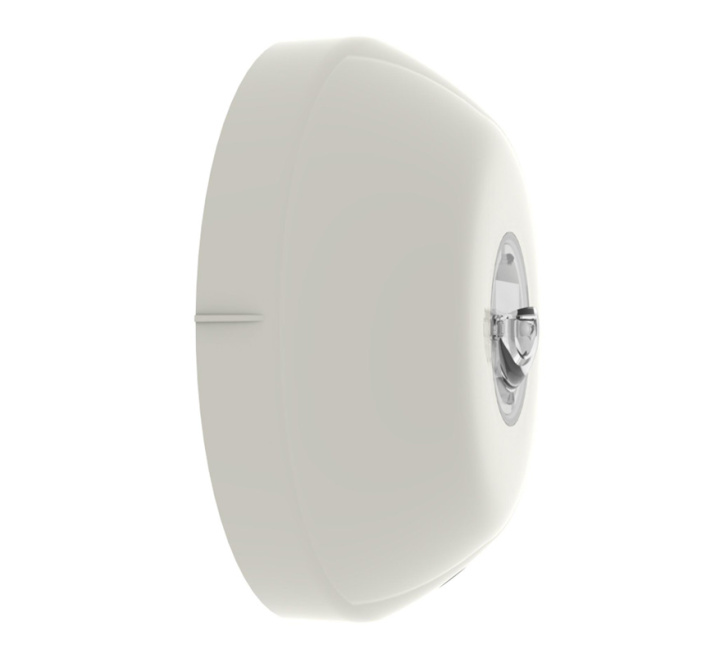

Hochiki CHQ-WB/WL Addressable Wall VAD Beacon - Ivory Case, White LEDs
SKU
CHQ-WB/WL
£59.76
£49.80
Hochiki CHQ-WB/WL Addressable Wall VAD Beacon - Ivory Case, White LEDs
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Hochiki CHQ-WB/WL Addressable Wall VAD Beacon - Ivory Case, White LEDs
The Hochiki CHQ-WB/WL is an Addressable Loop-Powered Wall Beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Various coverage volumes available based on 2.4m ceiling height, include 5m, 6m and 7m
The unit is designed to fit the YBN-R/3 and YBN-R/3(SCI) bases or the YBO-BS Base Sounder. This model features an ivory case and white LEDs.
Key Features of the CHQ-WB/WL |
|---|
|
> EN54-23 Compliant
> Loop Powered > High Intensity Flash > Range of Coverage Volumes > White LEDs > Colour-Matched with Existing Sensor Range |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CHQ-WB/WL |
| Product Series | Hochiki ESP |
| Colour | Ivory |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki CHQ-WB/WL Addressable Wall VAD Beacon - Ivory Case, White LEDs
No questions yet. Be the first to ask the question!
Product Specification for Hochiki CHQ-WB/WL Addressable Wall VAD Beacon - Ivory Case, White LEDs
| Description | Hochiki Addressable Loop-Powered Wall Beacon |
| Product Code | CHQ-WB/WL |
| Dimensions: | Dia:100mm x D:41mm |
| Operating voltage: | 17 - 41 VDC |
| Quiescent current (typ): | 250 μA |
| Current when beacon active: | 6 mA |
| Operating temperature range: | -10 °C to + 50 °C |
| Storage temperature range: | -30°C to +70°C |
| Maximum humidity: | 95% RH - Non Condensing (at 40°C) |
| Case colour / material: | Ivory / ABS |
| LED colour / lens material: | White / PC |
| IP Rating: | IP21 (IP33 when used in conjuction with CHQ-WPK Weatherproofing Kit) |
| Compatible bases: | YBN-R/3, YBN-R/3(SCI), YBO-BS (base sounder) |
| Base fixing centres: | 48 - 74 mm |
| Weight: | 120g |
