Hochiki CHQ-SOM Single Output Module
In Stock
Product Details for Hochiki CHQ-SOM Single Output Module
The Hochiki CHQ-SOM has been designed to allow a single relay output to be connected to the ESP loop. The unit incorporates a volt-free relay contact that can be configured as either N/O or N/C, the relay contact is rated to 30 VDC (max), 1 A (resistive load).

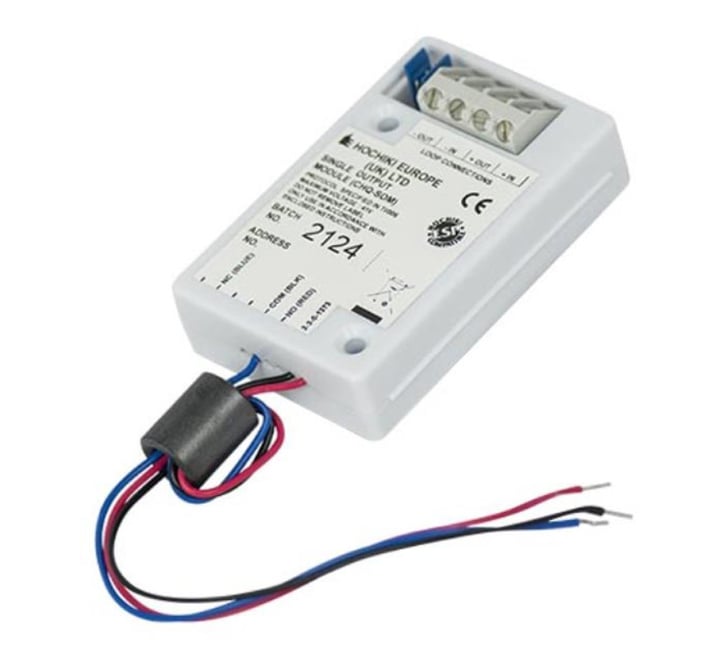

The CHQ-SOM features three colour-coded flying leads, the unit also features a wiring terminal block for loop connection.
NOTE: To maintain LPCB approval the device must be mounted in an SMB-1 enclosure (or an equivalent enclosure made from polycarbonate or a similar material which is impact resistant as per EN54-18:2005 Clause 5.9) in conjunction with the SMB-ADAPTOR plate, using two M3 screws or two M3 nuts and bolts.
Key Features of the CHQ-SOM |
|---|
|
> Includes a single monitored output
> Small design for simple provision of a monitored output onto an ESP loop > Flying leads for easy installation > Addressed with TCH-B200 Hand Held Programmer > Approved by LPCB |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CHQ-SOM |
| Product Series | Hochiki ESP |
| Colour | White |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki CHQ-SOM Single Output Module
No questions yet. Be the first to ask the question!
Product Specification for Hochiki CHQ-SOM Single Output Module
| Description | Hochiki Single Output Module |
| Product Code | CHQ-SOM* |
| Dimensions (mm): | L65 x W42 x H15 |
| Operating voltage: | 17 - 41 VDC |
| Quiescent / Alarm current: | 150 μA (at 41 V) max. |
| Output ratings: Max. voltage Max. current | 30 V dc 1 A (resistive load) |
| Operating temperature range: | -10 °C to + 50 °C |
| Storage temperature range: | -20 °C to + 60 °C |
| Maximum humidity: | 95% RH - Non condensing (at 40oC) |
| Colour, Case material: | Ivory ACS |
| Approval: | LPCB |
| Weight (g): | 25g |
| *Fire alarm control panel compatibility is required for this product | |
