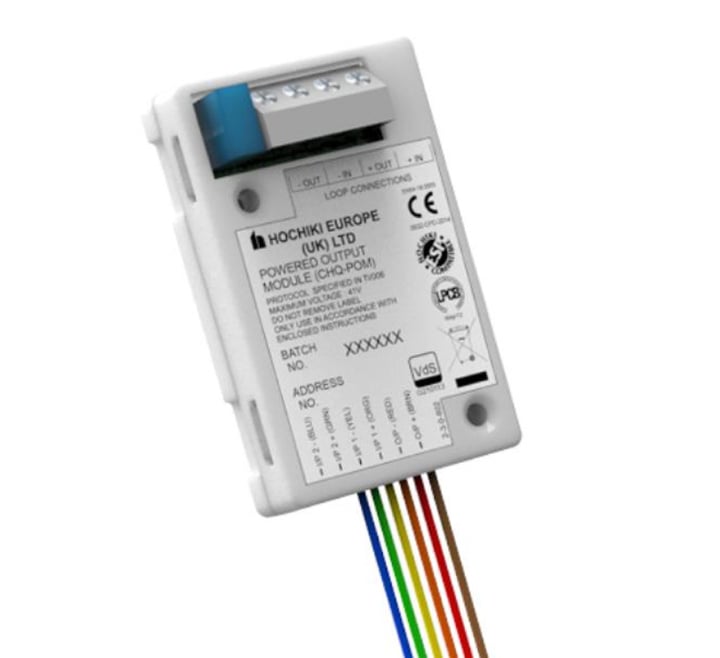

Hochiki CHQ-POM Powered Output Module
In Stock
Product Details for Hochiki CHQ-POM Powered Output Module
The Hochiki CHQ-POM is a powered-output module designed to supply 24 VDC at various, user-selectable current levels from 2 to 32 mA (in increments of 2 mA).
The unit is small enough to be added to other third-party devices thereby allowing a range of equipment to be added to the ESP loop. The unit also features two monitored inputs.
Key Features of the CHQ-POM |
|---|
|
> Supplies 24 VDC at various current levels, 2 mA to 32 mA in increments of 2 mA
> User-selectable current output > Includes two monitored inputs > Small design, provides simple connectivity to ESP loop for third-party devices, such as IFD-E > Colour-coded flying leads for simple installation |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CHQ-POM |
| Product Series | Hochiki ESP |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki CHQ-POM Powered Output Module
No questions yet. Be the first to ask the question!
Product Specification for Hochiki CHQ-POM Powered Output Module
| Description | Hochiki Powered Output Module |
| Product Code | CHQ-POM |
| Dimensions (mm): | L65 x W42 x H19 |
| Operating voltage: | 17 - 31 VDC |
| Quiescent current: | 200 μA (at 41 V) |
| Alarm current: | 2.3 ~ 32.3 mA |
| Test signal voltage: | 14 to 30 VDC |
| Input ratings: Open Circuit Normal State Input Activation Short Circuit | >100 kΩ ~10 kΩ (resistor provided) ~470 Ω (resistor provided) <50 Ω |
| Operating temperature range: | -10 °C to + 50 °C |
| Storage temperature range: | -30 °C to + 60 °C |
| Maximum humidity: | 95% RH - Non condensing (at 40oC) |
| Colour, Case material: | Ivory ACS |
| Weight (g): | 30g |
