Hochiki CHQ-PCM(SCI) Plant Control Module with SCI
Product Details for Hochiki CHQ-PCM(SCI) Plant Control Module with SCI

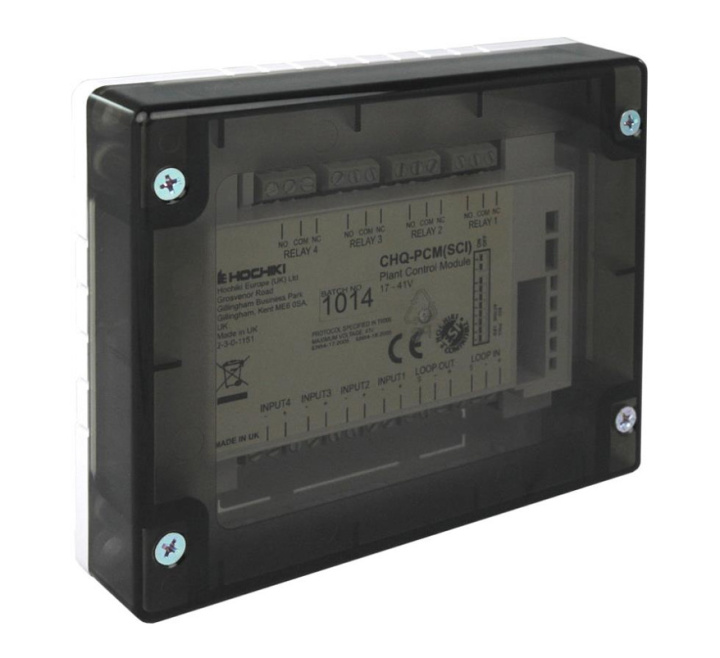

The Hochiki CHQ-PCM(SCI) is a loop-powered input/output module with four independent change-over relay outputs and four monitored inputs.
The outputs feature N/O and N/C volt-free contacts and can be driven separately under the control of the fire alarm panel, to be used for the control of devices such as dampers or for plant and equipment shutdown.
The four inputs are provided for local fire and fault monitoring and these are fully monitored for open and short circuit, which if required, can be enabled or disabled in pairs using a two-way DIL switch.
Note:- The state of the relay contacts will be indeterminate until the unit is powered.
The unit is also available in a DIN Rail mountable enclosure (CHQ-PCM/DIN(SCI)). A back box is also available (CHQ-BACKBOX) which, when used in conjunction with the CHQ-PCM(SCI), increases the IP rating to IP65.
When using heavy cables we recommend the use of the SMB-1 Module Enclosure in conjunction with the SMB-ADAPTOR plate.
Key Features of the CHQ-PCM(SCI) |
|---|
|
> Single loop address
> Loop powered > 4 change-over relay outputs > 4 inputs for monitoring of volt-free contacts > Each input can be configured to monitor either Normally Open or Normally Closed contacts > DIN rail version available > Features an integral short-circuit isolator > Approved by LPCB |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CHQ-PCM(SCI) |
| Product Series | Hochiki ESP |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
FAQ’s for Hochiki CHQ-PCM(SCI) Plant Control Module with SCI
Product Specification for Hochiki CHQ-PCM(SCI) Plant Control Module with SCI
| Description | Hochiki Analogue Plant Control Module |
| Product Code | CHQ-PCM(SCI) |
| Dimensions (mm): | L157 x W127 x H35 (CHQ Module with lid) |
| Transmission method: | Digital communication using ESP |
| Operating voltage (loop): | 17 - 41 VDC |
| Quiescent current (loop): | 300 μA |
| Current consumption (loop): | 22 mA ± 20 % (polling) |
| Maximum rated current: | 1 A (switch closed) |
| Relay contact rating: | 30 VDC max, 1 A (resistive load) |
| Input EOL resistor: | 10 kΩ, ±5%, 0.25 W |
| Input threshold level: | ON=470 Ω, Short cct <50 Ω, Open cct >100 KΩ |
| Leakage current: | 3 mA (switch open) |
| Colour, Case material: | CHQ Module & CHQ-BACKBOX white ABS |
| Weight (g): | 332g (567 with lid & CHQ-BACKBOX) |
| Fire alarm control panel compatibility is required | |
