Hochiki CHQ-DZM(SCI) Dual Zone Monitor with SCI
Product Details for Hochiki CHQ-DZM(SCI) Dual Zone Monitor with SCI
The Hochiki CHQ-DZM(SCI) is a marine-approved dual circuit zone monitor designed to allow up to 60 conventional detectors (30 on each zone) to be interfaced to Hochiki's ESP analogue addressable system.
The unit features a Schottky Diode line continuity option, when used inconjunction with the optional LCMU. Full monitoring against malfunction or disconnection, together with a self-test feature through the ESP protocol, ensure the integrity of the CHQ-DZM(SCI) at all times.

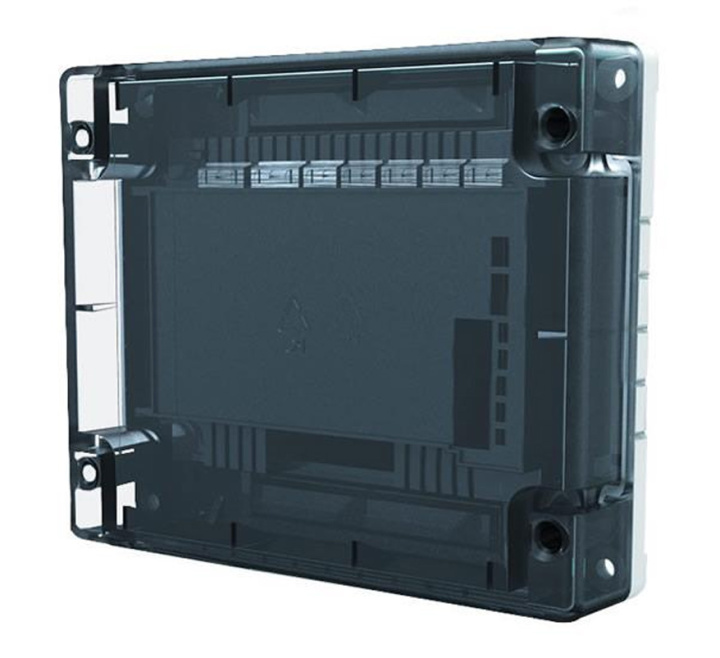

The CHQ-DZM(SCI) utilises simple DIL switches for reliable addressing.It is available as an OEM version (as illustrated above) and also as a DIN Rail mountable module (CHQ-DZM-DIN(SCI)). Both models feature an integral short-circuit isolator.
NOTE: When Resistive EOL option is chosen the conventional zone on the CHQ-DZM(SCI) does not support any line continuity options, therefore if call points are being interfaced they should be wired at the beginning of the zone.
Key Features of the CHQ-DZM(SCI) |
|---|
|
> Single loop address
> Supports two independent zones of conventional detectors > Both zones fully monitored for short/open circuit > Requires an auxiliary 24 VDC supply > DIN rail version available > Both models feature an integral short-circuit isolator > Approved by LPCB |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CHQ-DZM(SCI) |
| Product Series | Hochiki ESP |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
FAQ’s for Hochiki CHQ-DZM(SCI) Dual Zone Monitor with SCI
Product Specification for Hochiki CHQ-DZM(SCI) Dual Zone Monitor with SCI
| Description | Hochiki Analogue Dual Zone Monitor |
| Product Code | CHQ-DZM(SCI) |
| Dimensions (mm): | (with lid ) L 157 x W 127 x D 35 (with lid and backbox) D 79 |
| Operating voltage: | 17 - 41 VDC |
| Low power mode (typ): | 110 μA |
| Quiescent current (typ): | 330 μA |
| Current consumption: | (Quiescent) 2 mA, (Alarm) 70 mA (Both zones in fire) |
| Capacitance on zone: | 0.3 μF max. |
| Resistance on zone: | 50 Ω max. |
| Current in short-circuit: | 8 mA |
| Maximum short-circuit current: | 1 A |
| E.O.L. device options: | TE-RH-E (supplied), 6K8 resistor or LCMU (6K8) (not supplied) |
| Zone output voltage : | 15.3 - 17.1 V |
| Output rating*: | 24 VDC 8.5 mA |
| Quantity per zone: | DCA, DFB, DFE – No Limit, SLG, SLK, SLR, SIF, SIH, SIJ, DCC, DCD, DFJ – 30 max, SPB-ET, SPC-ET or SRA-ET – 3 max, HF-24 Only one and no other detectors, DRD-E – 15 max, CCP-E - No limit |
| Operating temperature range: | -10 °C to + 50 °C |
| Storage temperature range: | -30°C to +60°C |
| Weight: | 350g (585 with lid and backbox) |
| * Output Rating (24V 8.5mA) is for remote indication outputs | |
