Hochiki ESP Intelligent Marine Approved Dual Zone Monitor with SCI (CHQ-DZM/M(SCI))
Product Details for Hochiki ESP Intelligent Marine Approved Dual Zone Monitor with SCI (CHQ-DZM/M(SCI))
The Hochiki CHQ-DZM/M(SCI) is a marine-approved dual circuit zone monitor designed to allow up to 60 conventional detectors (30 on each zone) to be interfaced to Hochiki's ESP analogue addressable system
The unit features a Schottky Diode line continuity option, when used in conjunction with the optional LCMU. Full monitoring against malfunction or disconnection, together with a self-test feature through the ESP protocol, ensures the integrity of the CHQ-DZM/M(SCI) at all times

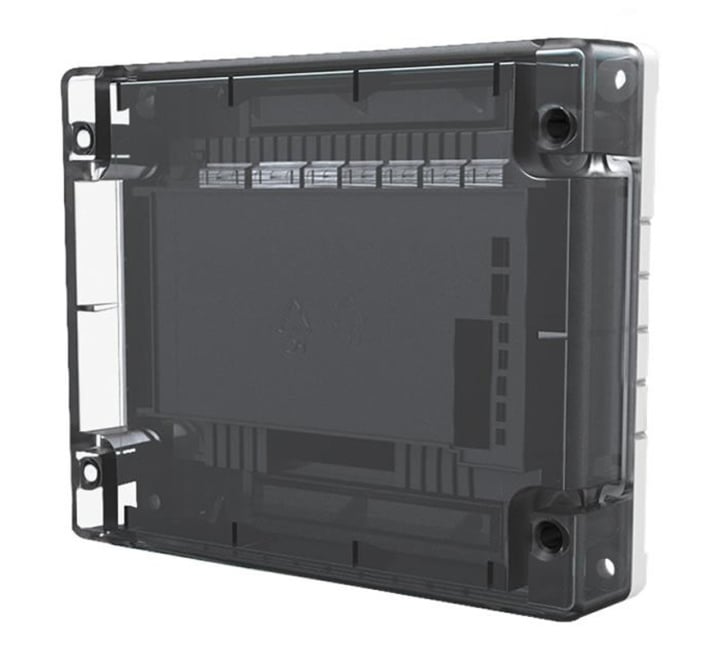

The CHQ-DZM/M(SCI) utilises simple DIL switches for reliable addressing. It is available as an OEM version (as illustrated above) and also as a DIN Rail mountable module (CHQ-DZM/M-DIN(SCI)). Both models feature an integral short-circuit isolator
NOTE: When the Resistive EOL option is chosen the conventional zone on the CHQ-DZM/M(SCI) does not support any line continuity options, therefore if call points are being interfaced they should be wired at the beginning of the zone
Key Features of the CHQ-DZM/M(SCI) |
|---|
|
> Single loop address
> Supports two independent zones of conventional detectors > Both zones fully monitored for short/open circuit > Requires an auxiliary 24 VDC supply > DIN rail version available > Both models feature an integral short-circuit isolator > Approved by DNV GL |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CHQ-DZM/M(SCI) |
| Product Series | Hochiki Intelligent Marine |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Number of Zones | 2 |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
FAQ’s for Hochiki ESP Intelligent Marine Approved Dual Zone Monitor with SCI (CHQ-DZM/M(SCI))
Product Specification for Hochiki ESP Intelligent Marine Approved Dual Zone Monitor with SCI (CHQ-DZM/M(SCI))
| Ordering Code | CHQ-DZMM(SCI) - SCI Module |
| Operating Voltage | 17 – 41 VDC |
| Low Power Mode (typ) | 110 μA |
| Quiescent Current (typ) | 330 μA |
| Current Consumption (external) | (Quiescent) 2 mA, (Alarm) 70 mA (Both zones in fire) |
| Capacitance on Zone | 0.3 μF max. |
| Resistance on Zone | 50 Ω max. |
| Current in Short Circuit | 8 mA |
| Max Short-Circuit Current (Loop) | 1 A |
| Operating Temperature Range | -10°C to +50°C |
| Storage Temperature Range | -30°C to +60°C |
| E.O.L Device Options | TE-RH-E (supplied), 6K8 resistor or LCMU (6K8) (not supplied) |
| Zone Output Voltage | 15.3 - 17.1 V |
| Output Rating* | 24 VDC 8.5 mA |
| Quantity per Zone | DCA, DFB, DFE – No Limit SLG, SLK, SLR, SIF, SIH, SIJ, DCC, DCD, DFJ – 30 max SPB-ET, SPC-ET or SRA-ET – 3 max HF-24 Only one and no other detectors DRD-E – 15 max CCP-E - No limit |
| Weights (g) / Dimensions (mm) | CHQ-DZMM(SCI) 350 (585 with lid and backbox) (with lid ) L 157 x W 127 x D 35 (with lid and backbox) D 79 |
