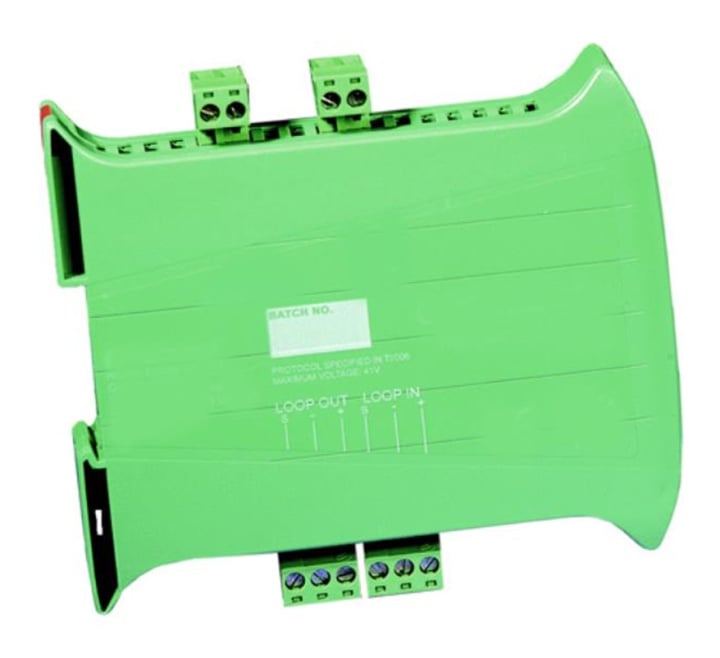

Hochiki CHQ-DZM/DIN(SCI)-IS Intrinsically Safe Compatible Dual Zone Monitor - DIN Enclosure with SCI
SKU
CHQ-DZM/DIN(SCI)-IS
£216.91
£180.76
Hochiki CHQ-DZM/DIN(SCI)-IS Intrinsically Safe Compatible Dual Zone Monitor - DIN Enclosure with SCI
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Hochiki CHQ-DZM/DIN(SCI)-IS Intrinsically Safe Compatible Dual Zone Monitor - DIN Enclosure with SCI
The Hochiki CHQ-DZM/DIN(SCI)-IS is Dual Zone Module which is fully compatible with Hochiki's ESP analogue addressable protocol and I.S. equipment.
It is supplied as a DIN Rail mountable module, a boxed version is also available. Addressing is achieved via simple DIL switches.
The device is designed to allow up to 40 (20 per zone) Conventional I.S. CDX Range detectors (SLR-E-IS or DCD-1E-IS) in the hazardous area to be interfaced to Hochiki's ESP analogue addressable system within the safe area.
- (Please note that this module should only be installed in the safe area)
The conventional zones on the CHQ-DZM/DIN(SCI)-IS do not support any line continuity options; therefore if Call Points are being interfaced they should be wired at the beginning of the zone
- An appropriate barrier must be used
Key Features of the CHQ-DZM/DIN(SCI)-IS |
|---|
|
> Single loop address
> Requires an auxiliary 24 V dc supply > Supports two independent zones of Hochiki I.S. Conventional Detectors > Both zones fully monitored for short/open-circuit > Boxed module version also available > Both models feature an integral short-circuit isolator |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CHQ-DZM/DIN(SCI)-IS |
| Product Series | Hochiki Intrinsically Safe |
| Colour | Green |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki CHQ-DZM/DIN(SCI)-IS Intrinsically Safe Compatible Dual Zone Monitor - DIN Enclosure with SCI
No questions yet. Be the first to ask the question!
Product Specification for Hochiki CHQ-DZM/DIN(SCI)-IS Intrinsically Safe Compatible Dual Zone Monitor - DIN Enclosure with SCI
| Description | Hochiki Analogue Dual Zone Monitor, DIN Module with SCI |
| Product Code | CHQ-DZM/DIN(SCI)-IS |
| Dimensions (mm): | L 108 x W 119 x D 24 |
| Operating voltage: | 17 - 41 VDC |
| Low power mode (typ): | 110 μA |
| Quiescent current (typ): | 330 μA |
| Current consumption (external): | (Quiescent) 2 mA, (Alarm) 70 mA (Both zones in fire) |
| Capacitance on zone: | 0.3 μF max. |
| Resistance on zone: | 50 Ω max. |
| Operating temperature range: | -10 °C to + 50 °C |
| Storage temperature range: | -30°C to +60°C |
| E.O.L. device options: | 10 KΩ resistor (supplied with unit) |
| Zone output voltage: | 15.3 - 17.1 V |
| Output rating*: | 24 VDC 8.5 mA |
| Colour, Case material: | Green / ABS |
| Weight: | 130g |
| * Output Rating (24V 8.5mA) is for remote indication outputs | |
