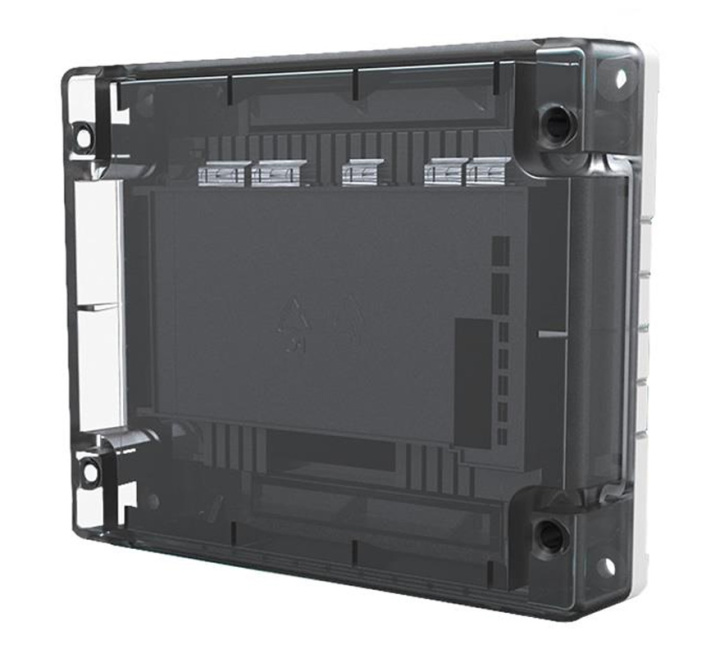

Hochiki ESP Intelligent Marine Approved Dual Sounder Controller with SCI (CHQ-DSC2/M(SCI))
SKU
CHQ-DSC2/M(SCI)
£101.53
£84.61
Hochiki ESP Intelligent Marine Approved Dual Sounder Controller with SCI (CHQ-DSC2/M(SCI))
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki ESP Intelligent Marine Approved Dual Sounder Controller with SCI (CHQ-DSC2/M(SCI))
The Hochiki CHQ-DSC2/M(SCI) is a Marine Approved Dual Sounder Controller, which has been designed to provide two sounder outputs (that can be driven separately) with full fault monitoring. The monitored input can be used for local power supply fault monitoring or as a general-purpose input. The unit utilises simple DIL switches for reliable addressing.
A back box is also available (CHQ-BACKBOX) which, when used in conjunction with the CHQ-DSC2/M(SCI), increases the IP rating to IP65.
Key Features of the CHQ-DSC2/M(SCI) |
|---|
|
> Single loop address
> Each alarm circuit fused at 1 amp > Two independent sounder circuits, each fully monitored for open and short circuit faults > Auxiliary monitored input > Outputs can be driven continuously or synchronised pulsed sounder drive > "Smart-Fix" housing system for flexibility > Features an integral SCI > Approved to MED by GL > GL Type approval > Approved by LPCB |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CHQ-DSC2/M(SCI) |
| Product Series | Hochiki Intelligent Marine |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki ESP Intelligent Marine Approved Dual Sounder Controller with SCI (CHQ-DSC2/M(SCI))
No questions yet. Be the first to ask the question!
Product Specification for Hochiki ESP Intelligent Marine Approved Dual Sounder Controller with SCI (CHQ-DSC2/M(SCI))
| Ordering Codes | CHQ-DSC2M(SCI) - Marine Module with SCI |
| Operating Voltage | 17-41 VCC |
| Quiescent Current (typical)*1 | 350 µA |
| Current Consumption | 22 mA ± 20% (polling) |
| Current in Short-Circuit | 8 mA |
| Maximum Short-Circuit Current (Loop) | 1 A |
| External Supply Voltage | 20-28.8 VDC (24 VDC nominal) |
| Current Consumption (per Bell Circuit) | Sounder ON - 8mA Sounder FAULT - 6mA |
| Sounder Output Current | 1A/line (max) fused @ 1.25 A |
| Sounder Line Capacitance | 0.3 µF/line (max/line) |
| Sounder E.O.L. Resistor | 1 kΩ, ±5%, 2 W |
| Input E.O.L. Resistor | 10 kΩ, ±5%, 0.25 W |
| Input Threshold Levels | ON=470 Ω, Short-Circuit <50 Ω, Open-Circuit >100 KΩ |
| Operating Temperature Range | -10°C to + 50°C |
| Storage Temperature Range | -30°C to + 60°C |
| Weight (g) Dimensions (mm) | Module 360g (add 235g to module weight when using CHQ-BACKBOX) L157 x H127 x H35 (Module plus Lid) H79 (CHQ-Module plus Lid plus CHQ,BACKBOX) DIN Module 145g L119 x H108 x D24 |
| Colour and Material | CHQ Module & CHQ-BACKBOX White ABS, DIN Module Green ABS, Module Lid Semi-Opaque Black ABS as standard (white version – CHQ-LID(WHT) also available) |
