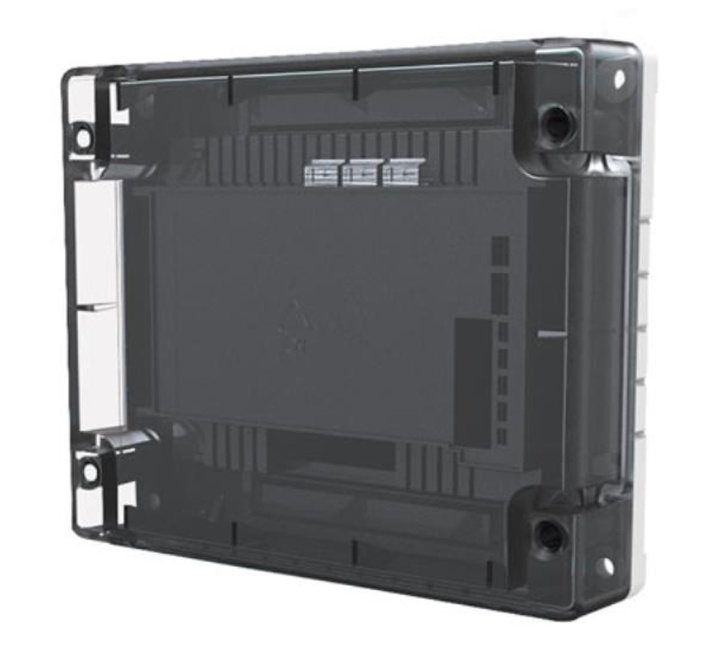

Hochiki ESP Intelligent Marine Approved Dual Relay Controller with SCI (CHQ-DRC2/M(SCI))
SKU
CHQ-DRC2/M(SCI)
£75.61
£63.01
Hochiki ESP Intelligent Marine Approved Dual Relay Controller with SCI (CHQ-DRC2/M(SCI))
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki ESP Intelligent Marine Approved Dual Relay Controller with SCI (CHQ-DRC2/M(SCI))
The Hochiki CHQ-DRC2/M(SCI) is a Marine Approved Dual Relay Controller module designed to provide two general-purpose relay outputs, each output can be driven separately for control of such devices as dampers or for control of plant and equipment shutdown. The monitored input can be used for local power supply fault monitoring or as a general-purpose input.
The unit also features an integral short-circuit isolator. The CHQ-DRC2/M(SCI) utilises simple DIL switches for reliable addressing. A back box is also available (CHQ-BACKBOX) which, when used in conjunction with the CHQ-DRC2/M(SCI), increases the IP rating to IP65.
Key Features of the CHQ-DRC2/M(SCI) |
|---|
|
> Loop Powered
> Single Address > 2 Independently Controlled Changeover relays > Relays Contact Rated at 30 V dc at 1 amp > Auxiliary Monitored Input > "Smart-Fix" Housing System for flexibility > Features an integral SCI > Approved to MED by GL > GL Type approval > Approved by LPCB |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CHQ-DRC2/M(SCI) |
| Product Series | Hochiki Intelligent Marine |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki ESP Intelligent Marine Approved Dual Relay Controller with SCI (CHQ-DRC2/M(SCI))
No questions yet. Be the first to ask the question!
Product Specification for Hochiki ESP Intelligent Marine Approved Dual Relay Controller with SCI (CHQ-DRC2/M(SCI))
| Ordering Codes | CHQ-DRC2M(SCI) - Marine Module with SCI |
| Operating Voltage | 17-41 VDC |
| Low Power Mode (0.75s) | 170 μA |
| Quiescent Current (typical)*1 | 300 μA |
| Current Consumption | 22 mA ± 20% (polling) |
| Current in Short-Circuit | 8 mA |
| Maximum Short-Circuit Current (Loop) | 1 A |
| Relay Contact Rating | 30 VDC max, 1A (resistive load) |
| Input E.O.L. Resistor | 10 kΩ, ±5%, 0.25 W |
| Input Threshold Level | ON=470 Ω, Short-Circuit <50 Ω, Open-Circuit >100 KΩ |
| Operating Temperature Range | -10°C to +50°C |
| Storage Temperature Range | -30°C to +60°C |
| Maximum Humidity | 95%RH - Senza condensa (a 40°C) |
| Weight (g) / Dimensions (mm) | Module Enclosure 343g (add 235 to weight when using CHQ-BACKBOX) L157 x W127 x D35 (Module & Lid) D79 (Module, Lid + CHQ-BACKBOX) DIN Enclosure 124g L119 x H108 x H24 |
| Colour and Material | CHQ Module & CHQ-BACKBOX White ABS, DIN Module Green ABS, Module Lid Semi-Opaque Black ABS as standard (white version – CHQ-LID(WHT) also available) |
