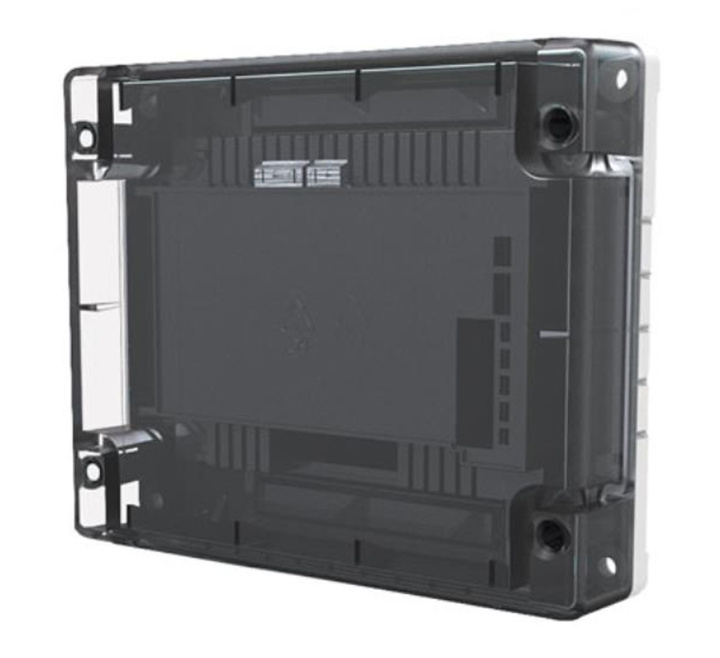

Hochiki ESP Intelligent Marine Approved Dual Input Module with SCI (CHQ-DIM2/M(SCI))
SKU
CHQ-DIM2/M(SCI)
£57.78 £48.15
Hochiki ESP Intelligent Marine Approved Dual Input Module with SCI (CHQ-DIM2/M(SCI))
- Buy 10 for £57.31 £47.76 each and save 1%
Product Details for Hochiki ESP Intelligent Marine Approved Dual Input Module with SCI (CHQ-DIM2/M(SCI))
The Hochiki CHQ-DIM2/M(SCI) is a Marine Approved Dual Input Module designed to interface to a variety of inputs such as door contacts, sprinkler flow/door switches and plant equipment. Also features an integral short-circuit isolator
A back box is also available (CHQ-BACKBOX) which, when used in conjunction with the CHQ-DIM2/M(SCI), increases the IP rating to IP65.
Key Features of the CHQ-DIM2/M(SCI) |
|---|
| > Single Loop Address > Loop Powered > 2 Independent Inputs for Monitoring of Volt Free Contacts > Each Input can be Configured to Monitor either Normally Open or Normally Closed contacts > "Smart-Fix" Housing System for flexibility > Features an integral SCI > Approved to MED by GL > GL Type Approval > Approved by LPCB |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CHQ-DIM2/M(SCI) |
| Product Range / Series | Hochiki Intelligent Marine |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki ESP Intelligent Marine Approved Dual Input Module with SCI (CHQ-DIM2/M(SCI))
No questions yet. Be the first to ask the question!
Product Specification for Hochiki ESP Intelligent Marine Approved Dual Input Module with SCI (CHQ-DIM2/M(SCI))
| Ordering Code | CHQ-DIM2M(SCI) - Marine Module |
| Operating Voltage | 17 – 41 VDC |
| Quiescent Current (typ) | 280 μA |
| Current Consumption | 22 mA ± 20 % (polling), 4.3 mA (both inputs active)*1 |
| Current in Short Circuit | 8 mA |
| Max Short-Circuit Current (Loop) | 1 A |
| Input Line Resistance ON Threshold | <50 Ω |
| OFF Threshold | >100 KΩ |
| Operating Temperature Range | -10 °C to +50 °C |
| Storage Temperature Range | -30 °C to +60 °C |
| Max Humidity | 95%RH - Non Condensing (at 40 °C) |
| Weights (g) / Dimensions (mm) | CHQ-DIM2M(SCI) 327 (+235 with lid and backbox) (with lid ) L 157 x W 127 x D 35 (with lid and backbox) D 79 |
