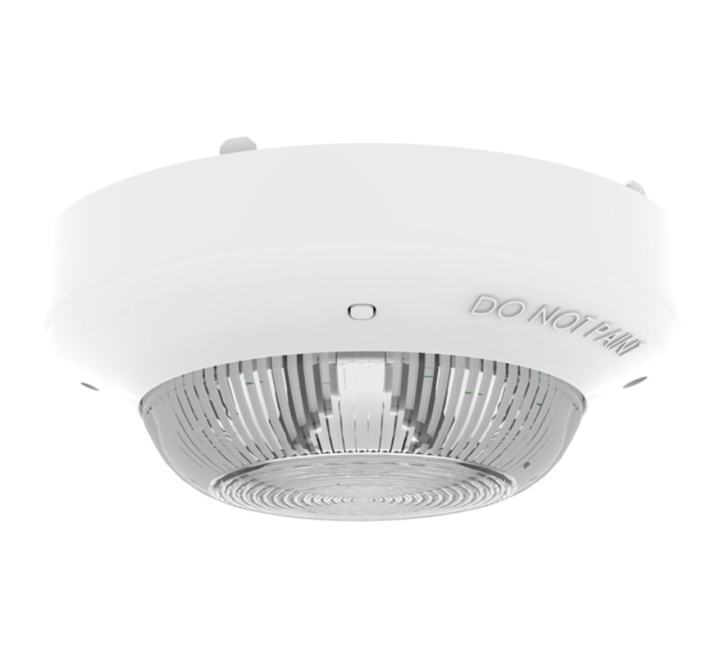

Hochiki CHQ-ARI(WHT) Addressable Remote Indicator - White Case, Clear Lens (non EN54-23 compliant)
SKU
CHQ-ARI(WHT)
£32.87
£27.39
Hochiki CHQ-ARI(WHT) Addressable Remote Indicator - White Case, Clear Lens (non EN54-23 compliant)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki CHQ-ARI(WHT) Addressable Remote Indicator - White Case, Clear Lens (non EN54-23 compliant)
The Hochiki CHQ-ARI(WHT) is a loop-powered Addressable Remote Indicator, with high-intensity LEDs and a Fresnel lens design which produces a highly visible signal.
The casing exactly matches the Hochiki white ESP sensor range in shape and colour providing seamless integration.
The unit can be used on the standard white ESP base (YBN-R/3(WHT)), the white base sounder (YBO-BS(WHT)), the white base sounder beacon (YBO-BSB(WHT)) or the white short-circuit isolator base (YBO-R/SCI(WHT)).
Key Features of the CHQ-ARI(WHT) |
|---|
|
> High Intensity LED technology
> Addressable via Hand Held Programmer (TCH-B200) > Up to 127 devices per loop > Approved by VdS |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CHQ-ARI(WHT) |
| Product Series | Hochiki ESP |
| Colour | White |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki CHQ-ARI(WHT) Addressable Remote Indicator - White Case, Clear Lens (non EN54-23 compliant)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki CHQ-ARI(WHT) Addressable Remote Indicator - White Case, Clear Lens (non EN54-23 compliant)
| Description | Hochiki Addressable Remote Indicator |
| Product Code | CHQ-ARI(WHT) |
| Dimensions: | Dia:100mm x D:38mm (46 with base) |
| Operating voltage: | 17 - 41 VDC |
| Quiescent current (typ): | 280 μA (300 μA max) |
| Loop current (when polled): | 22 mA ± 20% |
| Alarm curent (typ): | 4.5 mA (5.4 mA max) |
| Operating temperature range: | -10 °C to + 50 °C |
| Storage temperature range: | -30°C to +60°C |
| Maximum humidity: | 95% RH - Non Condensing (at 40°C) |
| Case colour: | White |
| Lens colour: | Clear |
| Base fixing centres: | 48 - 74 mm |
| Approvals: | VdS (G206053) |
| Weight: | 88g |
