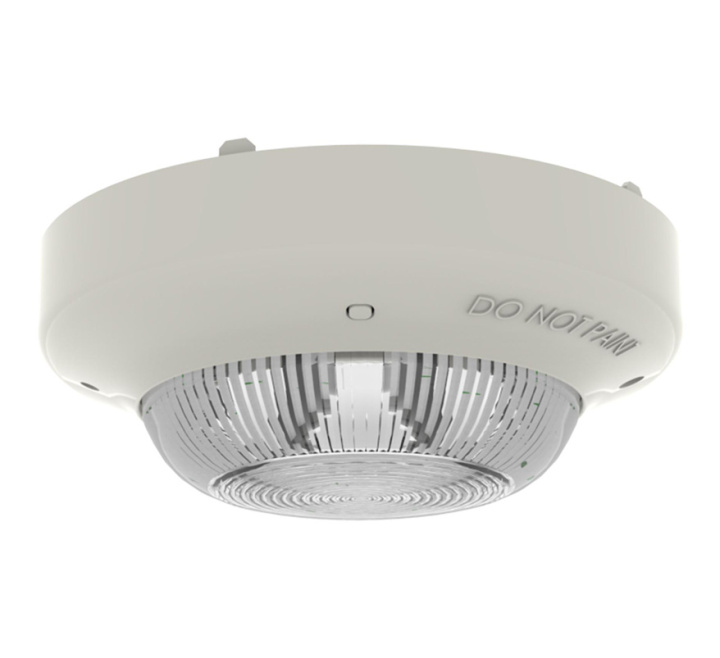

Hochiki CHQ-ARI Addressable Remote Indicator - Ivory Case, Clear Lens (non EN54-23 compliant)
Low Stock
Product Details for Hochiki ESP Addressable Remote Indicator (Ivory Case, Clear Lens) (Non EN54-23) (CHQ-ARI)
The Hochiki CHQ-ARI is a loop-powered Addressable Remote Indicator, with high-intensity LEDs and a Fresnel lens design which produces a highly visible signal.
The casing exactly matches the Hochiki ESP Sensor range in shape and colour providing seamless integration.
The unit can be used on the Standard ESP Base (YBN-R/3), the Base Sounder (YBO-BS), the Base Sounder Beacon (YBO-BSB2) or the Short-Circuit Isolator Base(YBO-R/SCI).
Key Features of the CHQ-ARI |
|---|
|
> High Intensity LED technology
> Addressable via Hand Held Programmer (TCH-B200) > Up to 127 devices per loop > Approved by VdS |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CHQ-ARI |
| Product Series | Hochiki ESP |
| Colour | Ivory |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki ESP Addressable Remote Indicator (Ivory Case, Clear Lens) (Non EN54-23) (CHQ-ARI)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki ESP Addressable Remote Indicator (Ivory Case, Clear Lens) (Non EN54-23) (CHQ-ARI)
| Description | Hochiki Addressable Remote Indicator |
| Product Code | CHQ-ARI |
| Dimensions: | Dia:100mm x D:38mm (46 with base) |
| Operating voltage: | 17 - 41 VDC |
| Quiescent current (typ): | 280 μA (300 μA max) |
| Loop current (when polled): | 22 mA ± 20% |
| Alarm curent (typ): | 4.5 mA (5.4 mA max) |
| Operating temperature range: | -10 °C to + 50 °C |
| Storage temperature range: | -30°C to +60°C |
| Maximum humidity: | 95% RH - Non Condensing (at 40°C) |
| Case colour: | Ivory |
| Lens colour: | Clear |
| Base fixing centres: | 48 - 74 mm |
| Approvals: | VdS (G206053) |
| Weight: | 88g |
