Hochiki ESP Addressable VID Beacon (White Case, Amber Lens) (Non EN54-23) (CHQ-AB(AMB)WHT)
SKU
CHQ-AB(AMB)WHT
£32.87
£27.39
Hochiki CHQ-AB(AMB)WHT Addressable VID Beacon - White Case, Amber Lens (non EN54-23 compliant)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki ESP Addressable VID Beacon (White Case, Amber Lens) (Non EN54-23) (CHQ-AB(AMB)WHT)

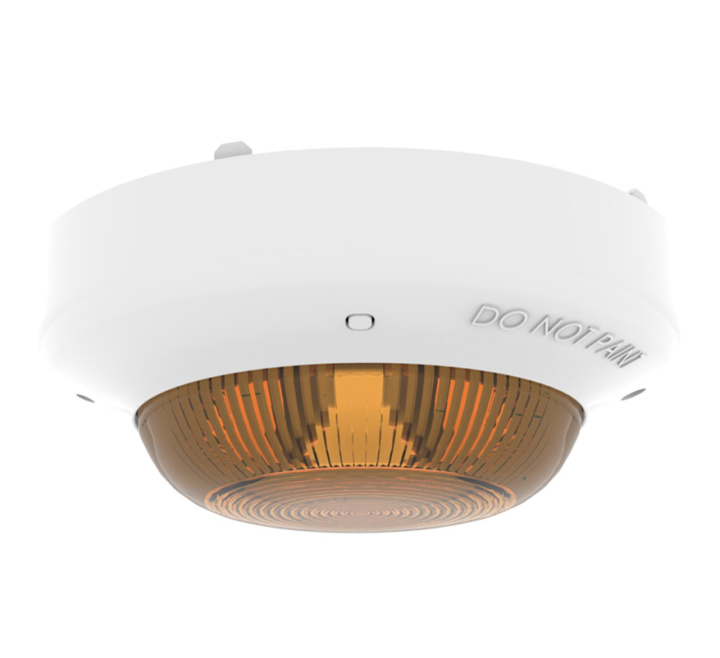

The Hochiki CHQ-AB(AMB)WHT is a loop-powered Beacon, with high-intensity LEDs and an amber Fresnel lens design which produces a highly visible flash.
The casing exactly matches the Hochiki Sensor range in shape and colour providing seamless integration.
The unit can be used on the Standard Base (YBN-R/3), or the Short-Circuit Isolator Base (YBO-R/SCI).
Key Features of the CHQ-AB(AMB)WHT |
|---|
|
> High Intensity LED technology
> Variable flash frequency > Addressable via Hand Held Programmer(TCH-B200) > Up to 127 devices per loop > Approved by VdS |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CHQ-AB(AMB)WHT |
| Product Series | Hochiki ESP |
| Colour | White |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki ESP Addressable VID Beacon (White Case, Amber Lens) (Non EN54-23) (CHQ-AB(AMB)WHT)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki ESP Addressable VID Beacon (White Case, Amber Lens) (Non EN54-23) (CHQ-AB(AMB)WHT)
| Description | Hochiki Analogue Addressable Loop-Powered Beacons |
| Product Code | CHQ-AB(AMB)WHT |
| Dimensions: | Dia:100mm x D:38mm (46 with base) |
| Operating voltage: | 17 - 41 VDC |
| Quiescent current (typ): | 240 μA (300 μA max) |
| Loop current (when polled): | 22 mA ± 20% |
| Alarm curent (typ): | 4.3 mA (5.0 mA max) |
| Operating temperature range: | -10 °C to + 50 °C |
| Storage temperature range: | -30°C to +60°C |
| Maximum humidity: | 95% RH - Non Condensing (at 40°C) |
| Case colour: | White |
| Lens colour: | Amber |
| Base fixing centres: | 48 - 74 mm |
| Approvals: | VdS (G206052) |
| Weight: | 88g |
