Hochiki CDX Weatherproof Conventional Manual Call Point (Yellow) (CCP-W/Y)
SKU
CCP-W/Y
£71.72
£59.77

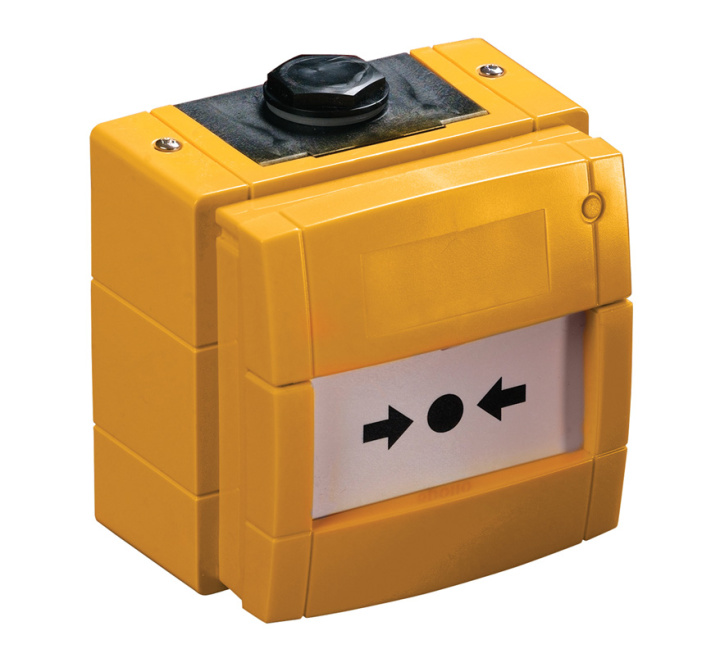

Hochiki CCP-W/Y Weatherproof Conventional Call Point - Yellow Case
Limited Stock
Product Details for Hochiki CDX Weatherproof Conventional Manual Call Point (Yellow) (CCP-W/Y)
The Hochiki CCP-W/Y is a Conventional call-point based upon the industry standard KAC world series housing and features easy to install, push-fit wiring terminals.
The unit can support either a ‘Frangible Glass’ element or a ‘Non Frangible Plastic’ element and features a weatherproof Housing to IP67, which means it can be mounted in the most severe environmental conditions without water ingress.
Key Features of the CCP-W/Y |
|---|
|
> Complies with BS5839 Part 2
> Push-fit terminals can accommodate up to a 2.5mm solid conductor > Other colours available on request IP rated to IP67 |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CCP-W/Y |
| Product Series | Hochiki CDX |
| Colour | Yellow |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki CDX Weatherproof Conventional Manual Call Point (Yellow) (CCP-W/Y)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki CDX Weatherproof Conventional Manual Call Point (Yellow) (CCP-W/Y)
| Description | Hochiki Conventional Weatherproof Manual Call Point |
| Product Code | CCP-W/Y |
| Dimensions: | W:98mm x H:94mm x D:78mm |
| Nominal operating resistance: | 470Ω |
| Max. contact resistance (R): | 200Ω |
| Operating temperature range: | -25 °C to +55 °C |
| Storage temperature range: | -25 °C to +55 °C |
| Maximum Humidity: | 95% RH Non Condensing (at 40°C) |
| IP rating: | IP67 |
| Colour/ Case material: | Yellow / ABS |
| Accessories: | Frangible element: KAC/G/HE Non-frangible element: KAC/EWS/HE |
| Weight: | 234g |
