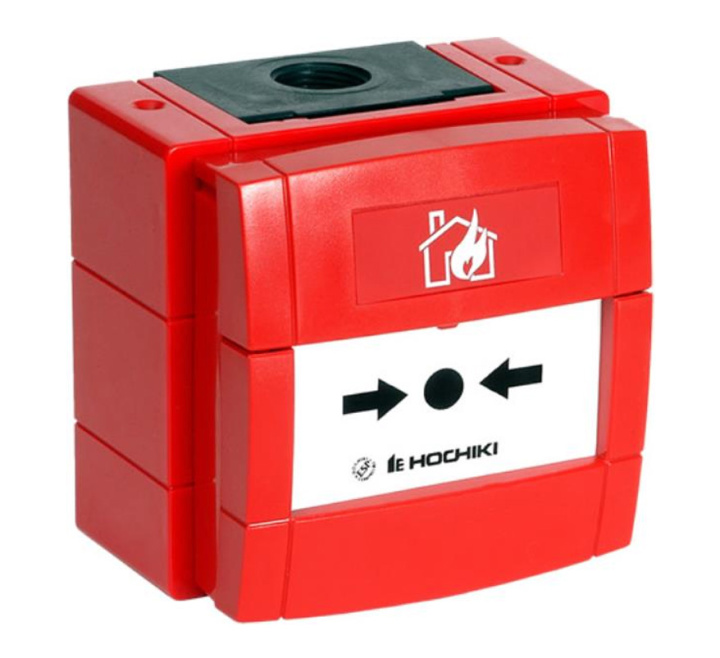

Hochiki CDX Weatherproof Conventional Manual Call Point with Backbox (Red) (CCP-W)
SKU
CCP-W
£67.86
£56.55
Hochiki CCP-W Weatherproof Conventional Call Point with Red Back Box
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Hochiki CDX Weatherproof Conventional Manual Call Point with Backbox (Red) (CCP-W)
The Hochiki CCP-W is a Conventional call-point based upon the industry standard KAC world series housing and features easy to install, push-fit wiring terminals.
The unit can support either a ‘Frangible Glass’ element or a ‘Non Frangible Plastic’ element and features a weatherproof Housing to IP67, which means it can be mounted in the most severe environmental conditions without water ingress.
Key Features of the CCP-W |
|---|
|
> Complies with BS5839 Part 2
> Push-fit terminals can accommodate up to a 2.5mm solid conductor > Other colours available on request > IP rated to IP67 |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CCP-W |
| Product Series | Hochiki CDX |
| Colour | Red |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki CDX Weatherproof Conventional Manual Call Point with Backbox (Red) (CCP-W)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki CDX Weatherproof Conventional Manual Call Point with Backbox (Red) (CCP-W)
| Description | Hochiki Conventional Weatherproof Manual Call Point |
| Product Code | CCP-W |
| Dimensions: | W:98mm x H:94mm x D:78mm |
| Nominal operating resistance: | 470Ω |
| Max. contact resistance (R): | 200Ω |
| Operating temperature range: | -25 °C to +55 °C |
| Storage temperature range: | -25 °C to +55 °C |
| Maximum Humidity: | 95% RH Non Condensing (at 40°C) |
| IP rating: | IP67 |
| Colour/ Case material: | Red / ABS |
| Accessories: | Frangible element: KAC/G/HE Non-frangible element: KAC/EWS/HE |
| Weight: | 234g |
