Hochiki CDX Weatherproof Conventional Manual Call Point with LED (Red) (CCP-W(LED)
SKU
CCP-W(LED)
£74.28
£61.90

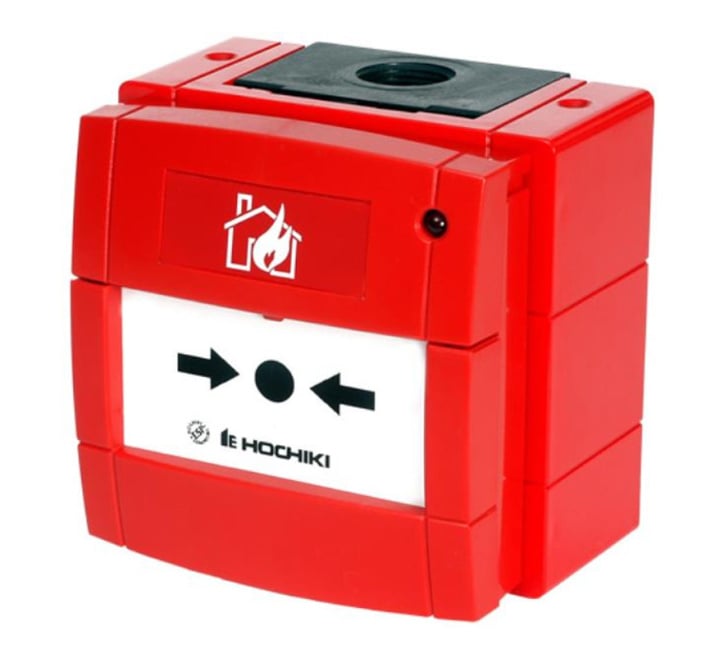

Hochiki CCP-W(LED) Weatherproof Conventional Call Point with LED Red
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki CDX Weatherproof Conventional Manual Call Point with LED (Red) (CCP-W(LED)
The Hochiki CCP-W(LED) is a Conventional call-point based upon the industry standard KAC world series housing and features easy to install, push-fit wiring terminals.
The unit can support either a "Frangible Glass" element or a "Non Frangible Plastic" element and features a weatherproof Housing to IP67, which means it can be mounted in the most severe environmental conditions without water ingress. The unit features a red activation LED.
Key Features of the CCP-W(LED) |
|---|
|
> Approved to EN54-11:2001
> Terminals can accommodate up to a 2.5 mm solid conductor > Ingress Protection rated to IP67 |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CCP-W(LED) |
| Product Series | Hochiki CDX |
| Colour | Red |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki CDX Weatherproof Conventional Manual Call Point with LED (Red) (CCP-W(LED)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki CDX Weatherproof Conventional Manual Call Point with LED (Red) (CCP-W(LED)
| Description | Hochiki Conventional Weatherproof Manual Call Point with LED Red |
| Product Code | CCP-W(LED) |
| Dimensions: | W:98mm x H:94mm x D:78mm |
| Nominal operating resistance: | 470Ω |
| Max. contact resistance (R): | 200Ω |
| Operating temperature range: | -25 °C to +55 °C |
| Storage temperature range: | -25 °C to +55 °C |
| Maximum Humidity: | 95% RH Non Condensing (at 40°C) |
| IP rating: | IP67 |
| Colour/ Case material: | Red with red LED / ABS |
| Accessories: | Frangible element: KAC/G/HE Non-frangible element: KAC/EWS/HE |
| Weight: | 234g |
