Hochiki CDX Conventional Manual Call Point (Yellow) (CCP-EY)
SKU
CCP-EY
£19.22
£16.02

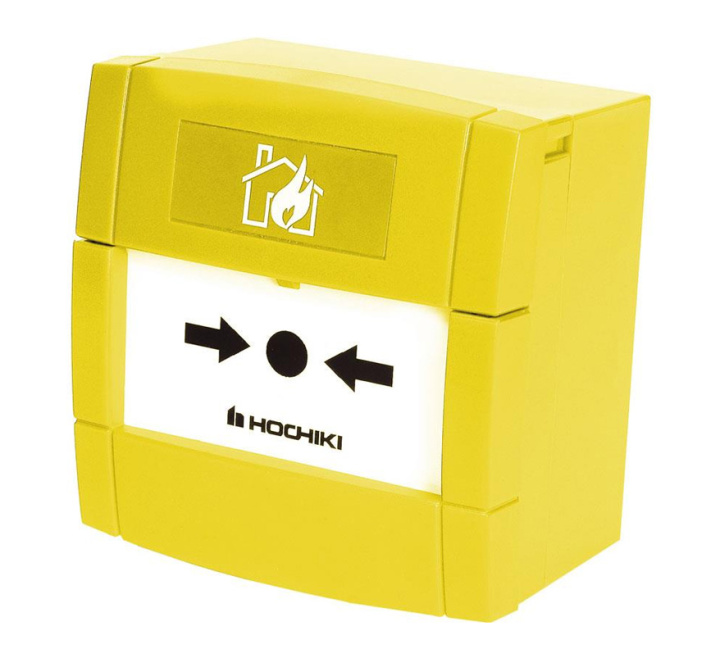

Hochiki CCP-EY Conventional Manual Call Point (Yellow)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki CDX Conventional Manual Call Point (Yellow) (CCP-EY)
The Hochiki CCP-EY is a yellow Conventional call-point based upon the industry standard KAC world series housing and features easy to install, push-fit wiring terminals. The unit can support either a ‘Frangible Glass’ element or a ‘Non Frangible Plastic’ element.
Key Features of the CCP-EY |
|---|
|
> Approved to EN54-11:2001
> Terminals can accommodate up to a 2.5 mm solid conductor > Other colours available on request |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | CCP-EY |
| Alternative Product Codes | CCP-E (YELLOW) |
| Product Series | Hochiki CDX |
| Colour | Yellow |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki CDX Conventional Manual Call Point (Yellow) (CCP-EY)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki CDX Conventional Manual Call Point (Yellow) (CCP-EY)
| Description | Hochiki Conventional Manual Call Point |
| Product Code | CCP-EY |
| Dimensions: Flush: Surface with back box: |
W:89mm x H:93mm x D:27.5mm W:89mm x H:93mm x D:59.5mm |
| Nominal operating resistance: |
470Ω |
| Max. contact resistance (R): |
200Ω |
| Operating temperature range: |
-10 °C to +55 °C |
| Storage temperature range: | -10 °C to +55 °C |
| Maximum Humidity: | 95% RH Non Condensing (at 40°C) |
| IP rating: | IP24 |
| Colour/ Case material: | Yellow / ABS |
| Cable terminal size: | 0.5 ~ 2.5 mm2 |
| Accessories: | Frangible element: KAC/G/HE Non-frangible element: KAC/EWS/HE |
| Weight: | 110g flush 161g surface with backbox |
