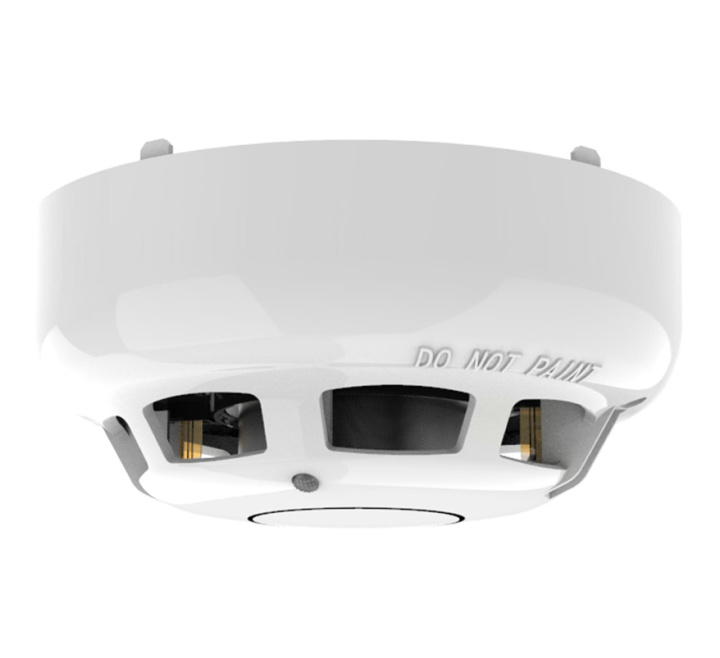

Hochiki ESP Intelligent Marine Approved Multi-Heat Detector (White) (ATJ-ENM(WHT))
SKU
ATJ-ENM(WHT)
£38.69
£32.24
Hochiki ESP Intelligent Marine Approved Multi-Heat Detector (White) (ATJ-ENM(WHT))
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki ESP Intelligent Marine Approved Multi-Heat Detector (White) (ATJ-ENM(WHT))
The Hochiki ATJ-ENM(WHT) is a Marine Approved Multi-Heat Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol.
The ATJ-ENM(WHT) incorporates a Variable Temperature heat element and a Rate Of Rise heat element, both of which are controlled from the Control Panel, allowing either thermal element or both elements simultaneously to be active in making the fire decision.
The sensor polling LEDs can also be controlled via the Control Panel (pulsing/non-pulsing).
Key Features of the ATJ-ENM(WHT) |
|---|
|
> User selectable modes
> Incorporates Fixed Temperature and Rate of Rise Heat elements > Twin LEDs allow 360 degree viewing ( green when polling, turning red in fire) > Pulsing/non-pulsing controlled from panel > Electronically addressed > LPCB EN54: Part 7, LR & GL > SIL Level 2 approved variants available > Available in ivory |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | ATJ-ENM(WHT) |
| Product Series | Hochiki Intelligent Marine |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Colour | White |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki ESP Intelligent Marine Approved Multi-Heat Detector (White) (ATJ-ENM(WHT))
No questions yet. Be the first to ask the question!
Product Specification for Hochiki ESP Intelligent Marine Approved Multi-Heat Detector (White) (ATJ-ENM(WHT))
| Operating Voltage | 17–41 VDC |
| Low Power Mode (typ) | 110 µA |
| Quiescent Current (typ) | 350 µA |
| Alarm Current (controlled by CIE) | 9.1 mA (excluding remote indicator) |
| Transmission Method | Digital Communications Using ESP |
| Operating Temperature Range | -10°C to +50°C |
| Operating Humidity | 95% RH - Non Condensing (at 40°C) |
| Storage Temperature Range | -30°C to +60°C |
| Storage Humidity | <80% RH at 70°C |
| Colour / Case Material | Ivory or White/Polycarbonate |
| Weight (g) | 95 |
| Diameter (mm) / Height (mm) | 100 / 45 |
| Base Fixing Centres (mm) | 48~74 |
| Compatible Bases | YBO-BS, YBO-BSB2, YBN-R/3(SCI)M |
| IP Rating | BS EN 60529:1992+A2 2013 (Protection rating IP42) |
| Approvals | LPCB & VdS approved to classes A1 & C |
