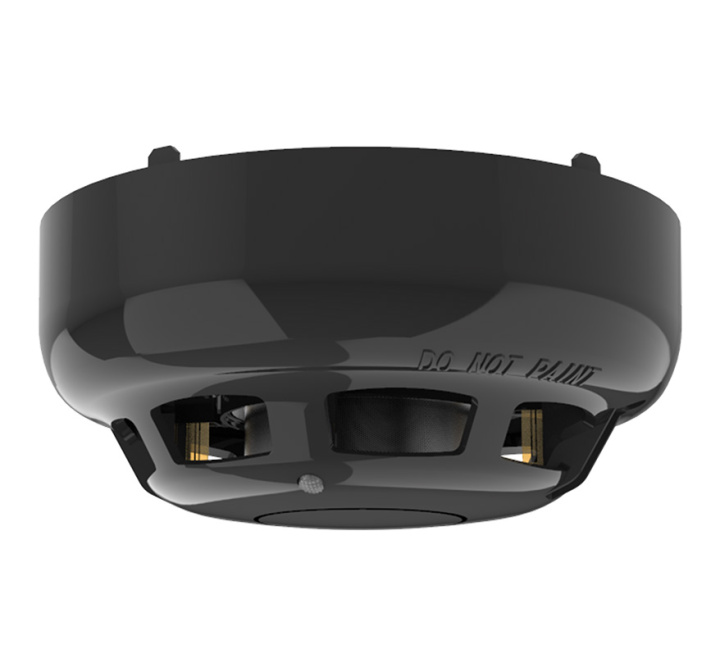

Hochiki ESP Addressable Heat Detector (Black Case) (ATJ-EN(BLK)
SKU
ATJ-EN(BLK)
£40.28
£33.57
Hochiki ATJ-EN(BLK) Addressable Heat Detector - Black Case
In Stock
Product Details for Hochiki ESP Addressable Heat Detector (Black Case) (ATJ-EN(BLK)
The Hochiki ATJ-EN(BLK) incorporates a variable temperature heat element and a rate of rise heat element, both of which are controlled from the Control Panel, allowing either thermal element or both elements simultaneously to be active in making the fire decision.
The sensor polling LEDs can also be controlled via the Control Panel (pulsing/non-pulsing)
Key Features of the ATJ-EN(BLK) |
|---|
|
> User selectable modes
> Incorporates Fixed Temperature and Rate of Rise Heat elements > Twin LEDs allow 360 degree viewing - green when polling, turn red in fire > Pulsing/non-pulsing controlled from panel(1) > Electronically addressed > LPCB and VdS approved to Classes A, B & C > SIL Level 2 approved variants available > Also available in ivory and white |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | ATJ-EN(BLK) |
| Product Series | Hochiki ESP |
| Colour | Black |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Detectable Medium | Heat |
| Warranty | 3 Years |
| Sensor Type | Thermistor |
Write Your Own Review
FAQ’s for Hochiki ESP Addressable Heat Detector (Black Case) (ATJ-EN(BLK)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki ESP Addressable Heat Detector (Black Case) (ATJ-EN(BLK)
| Description | Hochiki Analogue Multi Heat Sensor |
| Product Code | ATJ-EN(BLK) |
| Dimensions: | Dia:100mm x H:45mm |
| Operating voltage: | 17 - 41 VDC |
| Low Power mode (typ): | 110 μA |
| Quiescent current (typ): | 350 μA |
| Alarm current (controlled by CIE): | 9.1 mA (excl. remote indicator) |
| Transmission method: | Digital Communications using ESP |
| Operating temperature: | -10 °C to + 50 °C |
| Humidity (max): | 95% RH - Non Condensing (at 40 °C) |
| Storage temperature: | -30 °C to +60 °C |
| Storage humidity: | <80% RH at 70 °C |
| Colour/Case material: | Black/ Polycarbonate |
| Compatible bases: | YBN-R/3, YBO-R/SCI, YBO-BS, YBO-BSB, YBN-R/3(SCI) |
| Base fixing centres: | 48 - 74 mm |
| Approvals: | Classes A1R, BR, CR, A1S, BS & CS |
| IP Rating: | BS EN 60529:1992+A2 2013 (Protection rating IP42) |
| Weight: | 90g |
