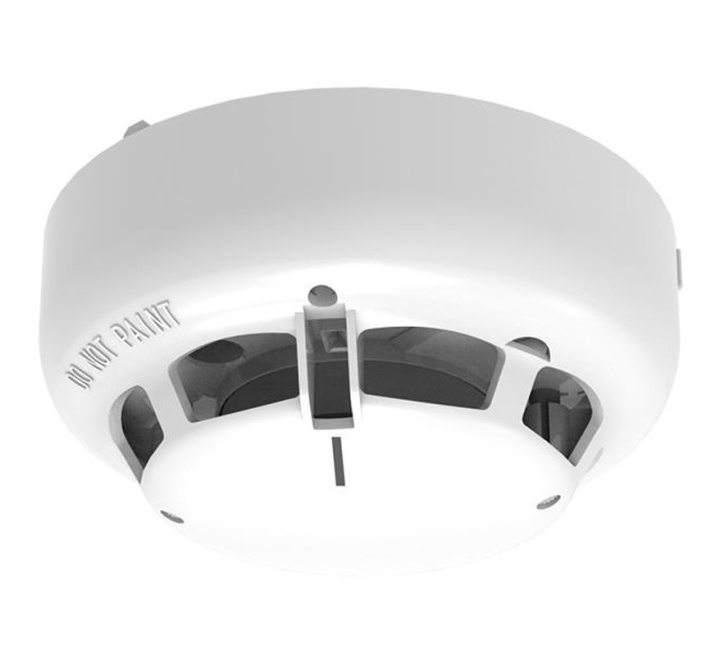

Hochiki ESP Addressable Optical Smoke Detector with SCI (White Case) (ALN-EN(WHT)-SCI)
SKU
ALN-EN(WHT)-SCI
£38.90
£32.42
Hochiki ALN-EN(WHT)-SCI Addressable Optical Smoke Detector with SCI - White Case
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki ESP Addressable Optical Smoke Detector with SCI (White Case) (ALN-EN(WHT)-SCI)
The Hochiki ALN-EN(WHT)-SCI is a Photoelectric Smoke Sensor with an integrated Short Circuit Isolator (SCI), which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol.
TheALN-EN(WHT)-SCI incorporates Hochiki’s newest High-Performance Chamber Technology removing the need to use Ionisation Smoke Sensors in the majority of applications. This also allows the sensor threshold level to be increased, thereby improving the signal to noise ratio and reducing susceptibility to false alarms.
TheALN-EN(WHT)-SCI smoke chamber is easily removed or replaced for cleaning and utilises a unique improved baffle design which allows smoke to enter the chamber whilst keeping out ambient light.
Key Features of the ALN-EN(WHT)-SCI |
|---|
|
> Removable, High Performance chamber
> Integrated short-circuit isolator > Requires the YBV-R/4 mounting base > Twin LEDs allow 360° viewing - green when polling, red in fire, amber when isolating > Locking mechanism (sensor to base) > Variable sensitivity > Electronically addressed > Pulsing/non-pulsing controlled from panel (1) > Approved by LPCB and VdS > Also available in ivory and black |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | ALN-EN(WHT)-SCI |
| Product Series | Hochiki ESP |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Detectable Medium | Smoke |
| Warranty | 3 Years |
| Sensor Type | Optical |
Write Your Own Review
FAQ’s for Hochiki ESP Addressable Optical Smoke Detector with SCI (White Case) (ALN-EN(WHT)-SCI)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki ESP Addressable Optical Smoke Detector with SCI (White Case) (ALN-EN(WHT)-SCI)
| Description | Hochiki Photoelectric Smoke Sensor with SCI |
| Product Code | ALN-EN (SCI) WHT |
| Dimensions: | Dia:100mm x H:45mm |
| Operating voltage: | 17 - 41 VDC |
| Low Power mode (typ): | 120 μA |
| Quiescent current (typ): | 400 μA |
| Alarm current (controlled by CIE): | 9.1 mA (excl. remote indicator) |
| Transmission method: | Digital Communications using ESP |
| Operating temperature: | -10 °C to + 50 °C |
| Humidity: | 95% RH - Non Condensing (at 40 °C) |
| Storage temperature: | -30 °C to +60 °C |
| Storage humidity: | <80% RH at 60 °C |
| Sensitivity levels: | 2%/m to 4.5%/m |
| Colour/Case material: | White / ABS |
| Compatible bases: | YBV-R/4, YBV-R/4 (WHT) |
| Base fixing centres: | 48 - 74 mm |
| Approvals: | LPCB, VdS |
| Wind exposure: | 1 ± 0,2 m s-1 (Ref EN54-7) |
| IP Rating: | IP42 |
| Weight: | 95g |
