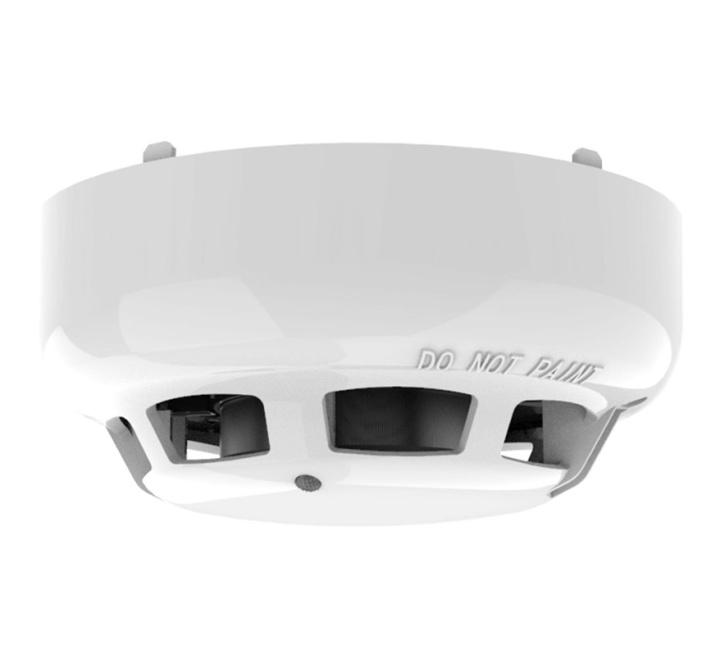

Hochiki ALN-EN(WHT) Addressable Optical Smoke Detector - White Case
SKU
ALN-EN(WHT)
£29.76 £24.80
Hochiki ALN-EN(WHT) Addressable Optical Smoke Detector - White Case
- Buy 10 for £29.30 £24.42 each and save 2%
- Buy 20 for £28.85 £24.04 each and save 3%
- Buy 50 for £28.39 £23.66 each and save 5%
The Hochiki ALN-EN(WHT) is an Optical Smoke Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol. The ALN-EN(WHT) incorporates Hochiki’s newest High-Performance Chamber Technology removing the need to use Ionisation Smoke Sensors in the majority of applications. This also allows the sensor threshold level to be increased, thereby improving the signal to noise ratio and reducing susceptibility to false alarms. The ALN-EN(WHT) smoke chamber is easily removed or replaced for cleaning and utilises a unique improved baffle design which allows smoke to enter the chamber whilst keeping out ambient light.
| Key Features |
|---|
| > Removable, High Performance chamber > Twin LEDs allow 360° viewing, green when polling, red in fire > Locking mechanism (sensor to base) > Variable sensitivity > Electronically addressed > Pulsing/non-pulsing controlled from panel(1) > Approved by LPCB & VdS > SIL Level 2 approved variant available > Also available in ivory and black |
| Manufacturer | Hochiki |
|---|---|
| MPN | ALN-EN(WHT) |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Description | Hochiki Photoelectric Smoke Sensor |
| Product Code | ALN-EN (WHT) |
| Dimensions: | Dia:100mm x H:45mm |
| Operating voltage: | 17 - 41 VDC |
| Low Power mode (typ): | 120 μA |
| Quiescent current (typ): | 400 μA |
| Alarm current (controlled by CIE): | 9.1 mA (excl. remote indicator) |
| Transmission method: | Digital Communications using ESP |
| Operating temperature: | -10 °C to + 50 °C |
| Humidity: | 95%RH - Non Condensing (at 40 °C) |
| Storage temperature: | -30 °C to +60 °C |
| Storage humidity: | <80% RH at 60 °C |
| Sensitivity levels: | 2%/m to 4.5%/m |
| Colour/Case material: | White/ ABS |
| Compatible bases: | YBN-R/3, YBO-R/SCI, YBO-BS, YBO-BSB2, YBN-R/3(SCI) |
| Base fixing centres: | 48 - 74 mm |
| Approvals: | LPCB, VdS |
| Wind exposure: | 1 ± 0,2 m s-1 (Ref EN54-7) |
| IP Rating: | IP42 |
| Weight: | 95g |
