Hochiki ESP Addressable Optical Smoke Detector (Ivory Case) (ALN-EN)
SKU
ALN-EN
£27.96
£23.30

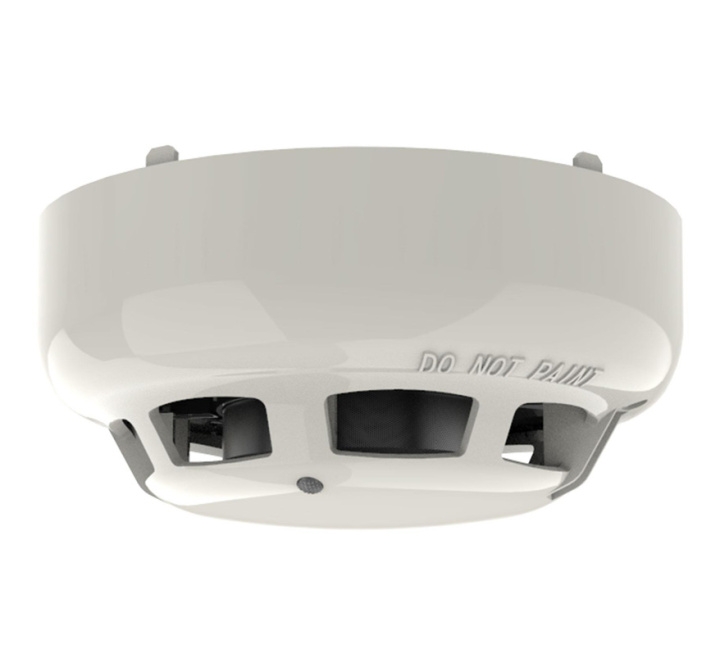

Hochiki ALN-EN Addressable Optical Smoke Detector - Ivory Case
In Stock
Product Details for Hochiki ESP Addressable Optical Smoke Detector (Ivory Case) (ALN-EN)
The Hochiki ALN-EN is a Photoelectric Smoke Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol.
The ALN-EN incorporates Hochiki’s newest High Performance Chamber Technology removing the need to use Ionisation Smoke Sensors in the majority of applications. This also allows the sensor threshold level to be increased, thereby improving the signal to noise ratio and reducing susceptibility to false alarms.
The ALN-EN smoke chamber is easily removed or replaced for cleaning and utilises a unique improved baffle design which allows smoke to enter the chamber whilst keeping out ambient light.
Key Features of the ALN-EN |
|---|
|
> Removable, High Performance chamber
> Twin LEDs allow 360° viewing - green when polling, red in fire > Locking mechanism (sensor to base) > Variable sensitivity > Electronically addressed > Pulsing/non-pulsing controlled from panel(1) > Approved by LPCB and VdS > SIL Level 2 capable variant available > Also available in white and black |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | ALN-EN |
| Product Series | Hochiki ESP |
| Colour | Ivory |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Detectable Medium | Smoke |
| Warranty | 3 Years |
| Sensor Type | Optical |
Write Your Own Review
FAQ’s for Hochiki ESP Addressable Optical Smoke Detector (Ivory Case) (ALN-EN)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki ESP Addressable Optical Smoke Detector (Ivory Case) (ALN-EN)
| Ordering Code | ALN-EN - Ivory / ALN-EN(WHT) - White / ALN-EN(BLK) - Black |
| Operating Voltage | 17 – 41 VDC |
| Low Power Mode (typ) | 120 μA (typ.) |
| Quiescent Current (typ) | 400 μA (typ.) |
| Alarm Current (controlled by CIE) | 9.1 mA (excluding remote indicator) |
| Transmission Method | Digital Communications using ESP |
| Operating Temperature Range | -10 °C to + 50 °C |
| Operating Humidity | 95%RH - Non Condensing (at 40 °C) |
| Sensitivity Levels | 2%/m to 4.5%/m |
| Storage Temperature Range | -30 °C to +60 °C |
| Storage Humidity | <80% RH at 60 °C |
| Colour / Case Material | Ivory, White or Black / ABS |
| Weight (g) | 95 |
| Diameter (mm) / Height (mm) | 100 / 45 |
| Compatible Bases | YBN-R/3, YBO-R/SCI, YBO-BS, YBO-BSB2, YBN-R/3(SCI) |
| Base Fixing Centres (mm) | 48 ~ 74 |
| Approvals | LPCB VdS |
| Wind Exposure (Ref EN54-7) | 1 ± 0.2 m s-1 |
| IP Rating | IP42 |
