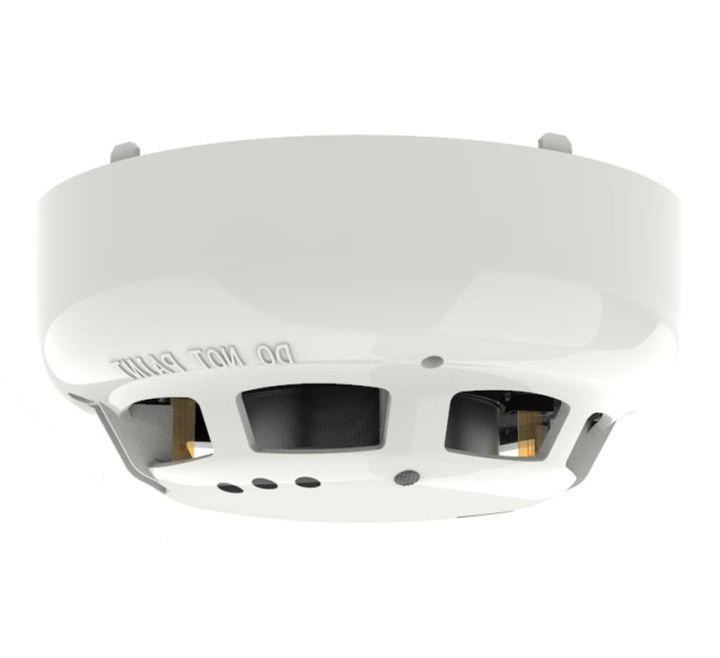

Hochiki ESP Addressable Optical/Heat/CO Multisensor Detector (White Case) (ACD-EN(WHT)
SKU
ACD-EN(WHT)
£96.70
£80.58
Hochiki ACD-EN(WHT) Addressable Optical/Heat Multi-Sensor Detector with CO - White Case
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki ESP Addressable Optical/Heat/CO Multisensor Detector (White Case) (ACD-EN(WHT)
The Hochiki ACD-EN(WHT) is an addressable loop-powered multi-sensor, with smoke, heat and CO sensing elements. The unit offers 24 different modes of operation and seamlessly matches the other sensors in the ESP Range. The CO sensing element can be used to detect smoke as well as life-threatening CO levels (acting as a CO alarm).
Built-in software enhancements (SMART algorithm) reduce false alarms.
(1) Control Panel compatibility required - please check with your panel manufacturer.
Key Features of the ACD-EN(WHT) |
|---|
|
> Control Panel compatibility required
> Low profile > Heat, Optical and CO sensing elements > CO Alarm (COHb) facility > 10 year CO sensor life > Programmable fire threshold level > RI & LED controllable separately if required > 2 colour LED (Polling: Green, Fire: RED) > 24 EN Approved Modes |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | ACD-EN(WHT) |
| Product Series | Hochiki ESP |
| Colour | White |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Detectable Medium | Smoke, Heat, Carbon Monoxide (CO) |
| Warranty | 3 Years |
| Sensor Type | Combined Optical, Thermistor and Electrochemical |
Write Your Own Review
FAQ’s for Hochiki ESP Addressable Optical/Heat/CO Multisensor Detector (White Case) (ACD-EN(WHT)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki ESP Addressable Optical/Heat/CO Multisensor Detector (White Case) (ACD-EN(WHT)
| Description | Hochiki Analogue Multi-Sensor Photoelectric/Heat |
| Product Code | ACD-EN(WHT) |
| Dimensions: | Dia:100mm x H:45mm (without base) |
| Operating voltage: | 17 - 41 VDC |
| Loop pulse voltage: | 7 - 9 VDC |
| Current consumption: | Quiescent: 410 μA (typ)*2 Loop Current (when polled): 22 mA ± 20%*2 Remote Indicator: 8.0 mA ± 20%*2 LED Current: 9.1 mA*2 Surge Current: 40 mA (for 50 ms) |
| Operating temperature: | -10 °C to + 50 °C |
| Humidity (max): | <95% RH (at 40 °C) <80% RH (at 50 °C) |
| Storage temperature: | -20 °C to +50 °C |
| Colour/Case material: | White / Polycarbonate (outer cover), PC/PS-GF (terminal plate) |
| Compatible bases: | YBN-R/3, YBO-R/SCI, YBN-R/3(SCI), YBO-BS, YBO-BSB, YBO-BSB2 |
| Base fixing centres: | 48 - 74 mm |
| Approvals: | EN 54-5:2000 + A1:2002 / EN 54-7:2000 +A1:2002 + A2:2006 / EN 54-26: 2015, EN 54-29: 2015 / EN 54-30: 2015 / EN 54-31: 2015 / CEA 4021:2003 |
| IP Rating: | IP42 |
| Weight: | 105g (without base) |
