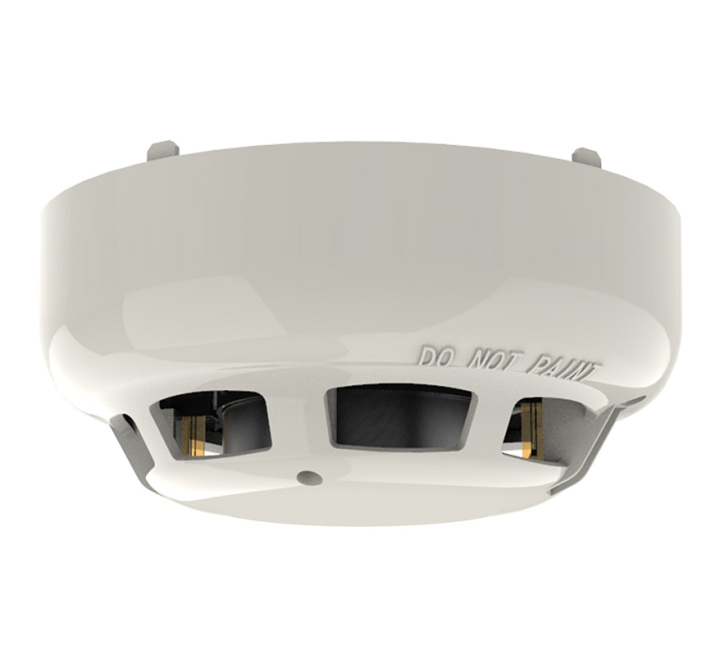

Hochiki ESP Intelligent Marine Approved Multisensor Optical/Heat (Ivory) (ACC-ENM)
SKU
ACC-ENM
£43.91
£36.59
Hochiki ESP Intelligent Marine Approved Multisensor Optical/Heat (Ivory) (ACC-ENM)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki ESP Intelligent Marine Approved Multisensor Optical/Heat (Ivory) (ACC-ENM)
The ACC-ENM Marine Approved multi-sensor detector has 3 modes, which are controlled from the control panel, allowing either the optical element or thermal element or both elements to be active in making the fire decision. The sensor polling LEDs can be controlled via the Control Panel (pulsing/non-pulsing). The smoke chamber can easily be removed or replaced for easy maintenance.
Key Features of the ACC-ENM |
|---|
|
> User selectable modes
> Incorporates Optical and Heat elements > Removable, High Performance Chamber > Twin LEDs allow 360 degree viewing - green when polling, red in fire > Pulsing/non-pulsing controlled from panel > Variable sensitivity > Electronically Addressed > LPCB and VdS approved to Classes A1 & C > SIL Level 2 approved variants available > Also available in white |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | ACC-ENM |
| Product Series | Hochiki Intelligent Marine |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Sensor Type | Combined Optical and Thermistor |
| Detectable Medium | Smoke, Heat |
| Colour | Ivory |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Hochiki ESP Intelligent Marine Approved Multisensor Optical/Heat (Ivory) (ACC-ENM)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki ESP Intelligent Marine Approved Multisensor Optical/Heat (Ivory) (ACC-ENM)
| Operating Voltage | 17 – 41 VDC |
| Low Power Mode (typ) | 120 µA |
| Quiescent Current (typ) | 400 µA |
| Alarm Current (controlled by CIE) | 9.1 mA (excluding remote indicator) |
| Transmission Method | Digital Communications Using ESP |
| Operating Temperature Range | -10 °C to + 50 °C |
| Operating Humidity | 95% RH - Non Condensing (at 40 °C) |
| Storage Temperature Range | -30 °C to +60 °C |
| Storage Humidity | <80% RH at 60 °C |
| Colour / Case Material | Ivory / Polycarbonate |
| Weight (g) | 95 |
| Diameter (mm) / Height (mm) | 100 / 45 |
| Base Fixing Centres (mm) | 48 ~ 74 |
| Compatible Bases | YBO-BS, YBO-BSB2, YBN-R/3(SCI)M |
