Hochiki ESP Addressable Optical/Heat Multisensor Detector (Black Case) (ACC-EN(BLK)
SKU
ACC-EN(BLK)
£43.97
£36.64

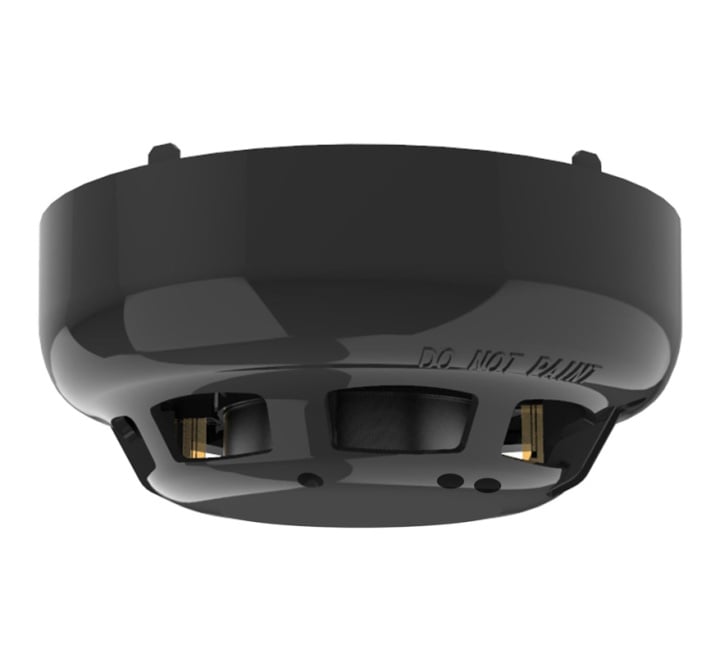

Hochiki ACC-EN(BLK) Addressable Optical/Heat Multi-Sensor Detector - Black Case
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Hochiki ESP Addressable Optical/Heat Multisensor Detector (Black Case) (ACC-EN(BLK)
The Hochiki ACC-EN(BLK) is a Multi-Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol, and incorporates a thermal element and High Performance photoelectric smoke chamber.
TheACC-EN(BLK) has three modes, which are controlled from the Control Panel, allowing either the optical element or thermal element or both elements to be active in making the fire decision. The sensor polling LEDs can be controlled via the Control Panel (pulsing/non-pulsing). TheACC-EN(BLK) smoke chamber can easily be removed or replaced for easy maintenance.
Key Features of the ACC-EN(BLK) |
|---|
|
> User selectable modes
> Incorporates Optical and Heat elements > Removable, High Performance Chamber > Twin LEDs allow 360 degree viewing - green when polling, red in fire > Pulsing/non-pulsing controlled from panel (1) > Variable sensitivity > Electronically Addressed > LPCB and VdS approved to Classes A1 & C > SIL Level 2 approved variants available > Also available in white and ivory |
| Brand | Hochiki |
|---|---|
| Manufacturer Part No. | ACC-EN(BLK) |
| Product Series | Hochiki ESP |
| Colour | Black |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Hochiki ESP |
| Detectable Medium | Smoke, Heat |
| Warranty | 3 Years |
| Sensor Type | Combined Optical and Thermistor |
Write Your Own Review
FAQ’s for Hochiki ESP Addressable Optical/Heat Multisensor Detector (Black Case) (ACC-EN(BLK)
No questions yet. Be the first to ask the question!
Product Specification for Hochiki ESP Addressable Optical/Heat Multisensor Detector (Black Case) (ACC-EN(BLK)
| Description | Hochiki Analogue Multi-Sensor Photoelectric/Heat |
| Product Code | ACC-EN(BLK) |
| Dimensions: | Dia:100mm x H:45mm |
| Operating voltage: | 17 - 41 VDC |
| Low Power mode (typ): | 120 μA |
| Quiescent current (typ): | 400 μA |
| Alarm current (controlled by CIE): | 9.1 mA (excl. remote indicator) |
| Transmission method: | Digital Communications using ESP |
| Operating temperature: | -10 °C to + 50 °C |
| Humidity (max): | 95% RH - Non Condensing (at 40 °C) |
| Storage temperature: | -30 °C to +60 °C |
| Storage humidity: | <80% RH at 70 °C |
| Colour/Case material: | Black / Polycarbonate |
| Compatible bases: | YBN-R/3, YBO-R/SCI, YBN-R/3(SCI)*2, YBO-BS, YBO-BS2, YBO-BS2(SCI)*2, YBO-BSB, YBO-BSB2, YBV-R/4*2 |
| Base fixing centres: | 48 - 74 mm |
| Approvals: | EN54-7, EN54-5 and EN54-29, LPCB & VdS approved to categories A1 & C, SIL2 |
| Wind exposure: | 1 ± 0,2 m s-1 (Ref EN54-7) |
| IP Rating: | IP42 |
| Weight: | 95g |
