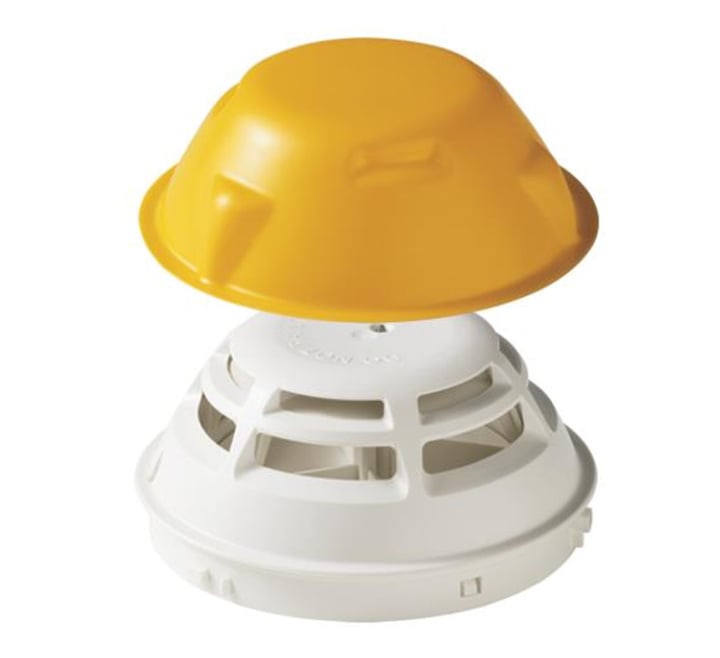

Siemens HI360 Cerberus 360 Heat Detector (Static + RoR) (S54310-F104-A1)
SKU
S54310-F104-A1
£28.63
£23.86
Siemens HI360 Cerberus 360 Heat Detector (Static + RoR) (S54310-F104-A1)
In Stock
Product Details for Siemens HI360 Cerberus 360 Heat Detector (Static + RoR) (S54310-F104-A1)
The Siemens HI360 is a static temperature heat detector with additional rate of rise function. It is designed for use in areas where smoke detection is impractical due to high level of dust, dirt, steam and high humidity. Selectable parameter sets for rate of rise and fixed temperature.
The base must be ordered separately.
Key Features of the S54310-F104-A1 |
|---|
|
> For high requirements
> Reliable response behaviour for slow and rapid temperature rises, plus reliable response behaviour for low temperatures > Selectable detection behaviour thanks to two parameter sets: Parameter set 1: 'A2S' , Parameter set 2: 'A2R' > Resistant to environmental and interfering influences such as dust, fibres, insects, moisture, extreme temperatures, electromagnetic interference, corrosive vapours, vibration > Shock resistant, protection against sabotage > Protected electronics, high-quality components > Integrated line separator: The defective part on the detector line is located by the fire control panel and isolated between two C-NET devices. > Integrated alarm indicator (AI), located centrally, 360° visibility > Up to 2 external alarm indicators type FDAI91/FDAI92/FDAI93 can be connected per detector > Signal processing with detection algorithms > Address automatically issued during commissioning > Same detector base can be used for every detector type, for surface-mounted and recess-mounted supply lines |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | HI360 |
| Product Series | Cerberus 360 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Colour | White |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens HI360 Cerberus 360 Heat Detector (Static + RoR) (S54310-F104-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens HI360 Cerberus 360 Heat Detector (Static + RoR) (S54310-F104-A1)
| Standard | EN 54-5 , EN 54-17 |
| Protection category | IP40; IP42 with detector base seal |
| Operating voltage | DC 12…33 V |
| Operating temperature | -10…55 °C |
| Storage temperature | -30...+70 °C |
| Quiescent current | ~220 μA |
| Ext. alarm indicator | 2 |
| System compatibility | C-NET -> FC360 |
| Communication protocol | C-NET |
| Relative humidity | ≤95 % rel. |
| Permissible air speed | 5 m/s |
| Dimensions (W x H) | 105 x 49 mm |
| Color | Pure white, ~RAL 9010 |
