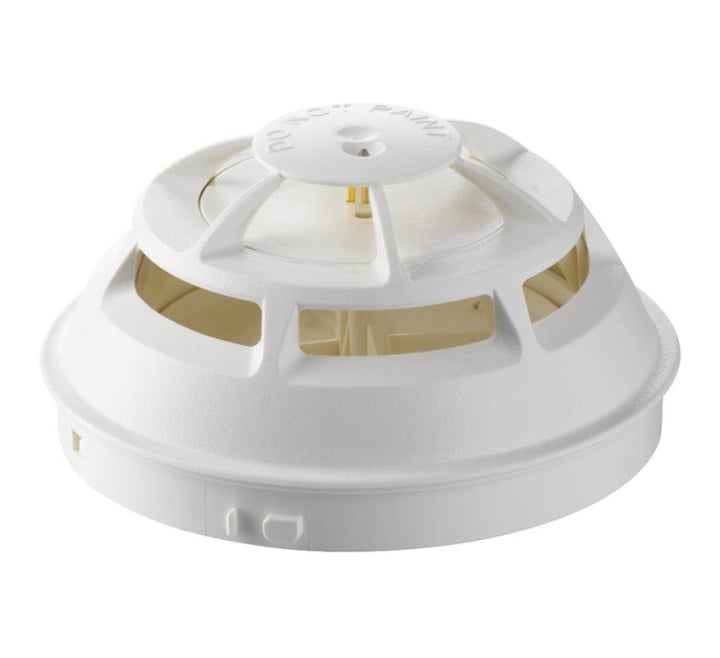

Siemens HI112 Cerberus FIT Conventional Heat Detector (Static 60°C) (S54372-F10-A1)
SKU
S54372-F10-A1
£15.42
£12.85
Siemens HI112 Cerberus FIT Conventional Heat Detector (Static 60°C) (S54372-F10-A1)
In Stock
Product Details for Siemens HI112 Cerberus FIT Conventional Heat Detector (Static 60°C) (S54372-F10-A1)
The Siemens HI112 Heat Detector for areas having high levels of dirt or temperature fluctuation that may lead to false activating with smoke detectors.
Selectable detection behaviour by two parameter sets: parameter set 1 (A2S) and parameter set 2 (B).
Key Features of the S54372-F10-A1 |
|---|
|
> Point detector with heat sensor
> Measures the operating temperature, sends a danger signal to the control panel if the maximum temperature is exceeded > Selectable detection behaviour due to two parameter sets Parameter set 1: 'A2S' & Parameter set 2: 'B' > For use where significant contamination and fluctuations in temperature could impair the operation of standard detectors |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | HI112 |
| Product Series | Cerberus FIT |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Thermistor |
| Detectable Medium | Heat |
| Colour | White |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens HI112 Cerberus FIT Conventional Heat Detector (Static 60°C) (S54372-F10-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens HI112 Cerberus FIT Conventional Heat Detector (Static 60°C) (S54372-F10-A1)
| Product: | Siemens Heat Detector |
| Product code: | S54372-F10-A1 |
| Standard: | EN 54-4 |
| Operating voltage: | DC 16 - 28V |
| Operating temperature: |
-10 to 50 °C |
| Storage temperature: |
-30 to 70 °C |
| Quiescent current: | Max. 100 μA |
| Communication protocol: |
Collective/Conventional
|
| Protection category: | IP40; IP42 with detector base seal; IP44 with base attachment wet |
| Relative humidity: | ≤96 % rel. |
| Colour housing/cover: | Pure white, ~RAL 9010 |
