Hamilton Metalclad 13A Double Pole Key Switch Fused Spur + Neon (Red) (MCKSPNRD-W)
SKU
MCKSPNRD-W
£14.04
£11.70
Hamilton Metalclad 13A Double Pole Key Switch Fused Spur + Neon (MCKSPNRD-W)
Limited Stock
Product Details for Hamilton Metalclad 13A Double Pole Key Switch Fused Spur + Neon (Red) (MCKSPNRD-W)

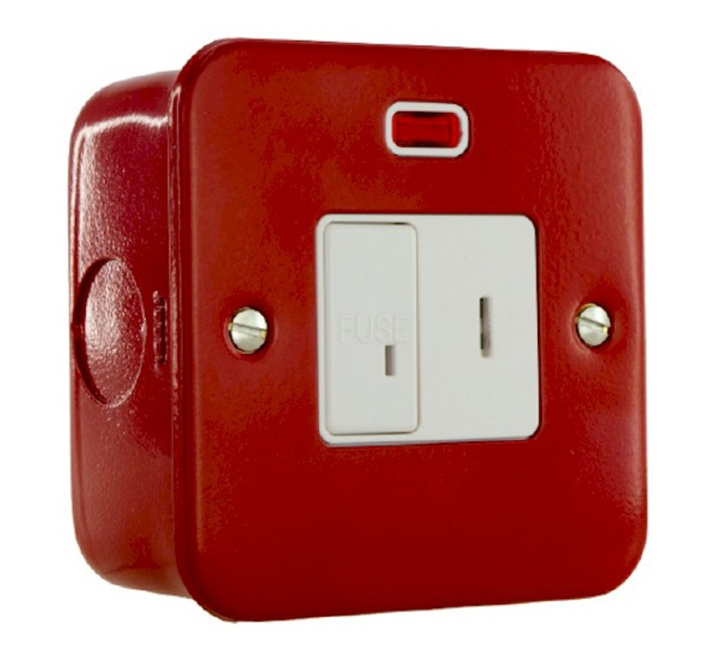

The Hamilton Metalclad MCKSPNRD-W is a 13A double pole key switch fused spur in a red finish with a back box developed to ensure an exact fit.
Tough and impact-resistant, Metalclad is suitable where hard-wearing performance is required: workshops, garages, sheds, schools and industrial premises.
Key Features of the MCKSPNRD-W |
|---|
|
> Double pole switching as standard
> Very Durable |
| Brand | Hamilton |
|---|---|
| Manufacturer Part No. | MCKSPNRD-W |
Write Your Own Review
FAQ’s for Hamilton Metalclad 13A Double Pole Key Switch Fused Spur + Neon (Red) (MCKSPNRD-W)
No questions yet. Be the first to ask the question!
Product Specification for Hamilton Metalclad 13A Double Pole Key Switch Fused Spur + Neon (Red) (MCKSPNRD-W)
| Insert Type | 13A Double Pole Key Switch Fused Spur + Neon |
| Insert Colour | White |
| Dimensions(Nominal) | Single: Height = 80.0mm Width = 80.0mm Depth = 41.5mm |
| Weight | 260 GR |
| Fixing Hole Centres | Box Fixing = 60.3mm Grid Fixing = N/A |
| Minimum Wall Box Depth | 40mm |
| Switched Poles | Double |
| Current Rating | 13 Amp |
| Voltage | 220/250V AC |
| Maximum Load | 13 Amp |
| Mains Frequency | 50Hz |
| IP Rating | IP2XD |
| Contact Gap | Minimum 3mm |
| Terminal Capacity 1 | 3x2.5mm² |
| Terminal Capacity 2 | 2x4mm² Multi-Strand |
| Terminal Capacity 3 | 1x6mm² |
| Earth Terminal Capacity 1 | 6x1mm² |
| Earth Terminal Capacity 2 | 5x1.5mm² |
| Earth Terminal Capacity 3 | 2x4mm² Multi-Strand |
| Earth Terminal Capacity 4 | 1x6mm² |
| Product Class | 1 Must be earthed |
| Ambient Operating Temperature | -5° to +40°C |
| Recommended Location | Internal Use Only |
| Maximum Installation Altitude | 2000m |
| Standard/Approval | BS 1363-4 |
| Additional Notes | Key Included |
