GST DC9000 / DI9000 Series Conventional Remote Indicator (C-9314P)
SKU
C-9314P
£5.21
£4.34
DC9000 / DI9000 Series conventional remote indicator
- Buy 10 for £5.14 £4.28 each and save 1%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for GST DC9000 / DI9000 Series Conventional Remote Indicator (C-9314P)

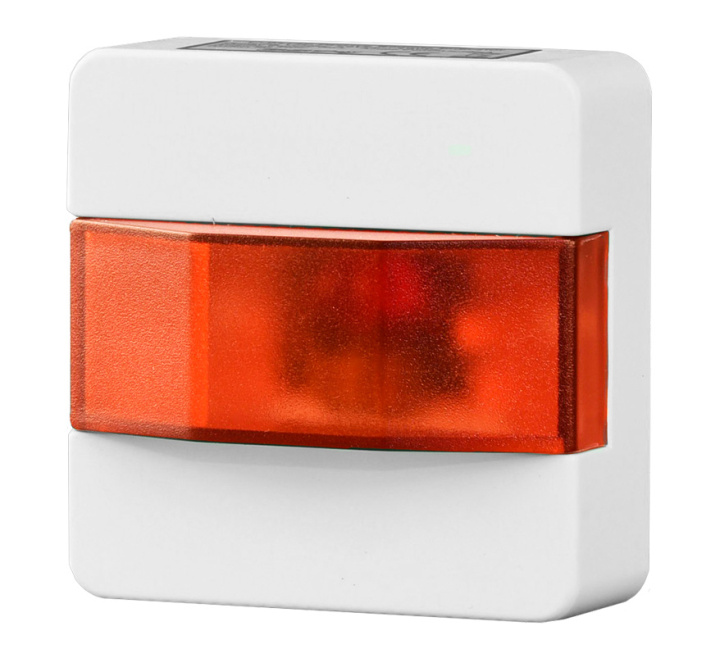

The C-9314P remote indicator is used to replicate the fire alarm indication for a fire detector and indicate it where it can be viewed easily. It is controlled directly from the detector. It is particularly suitable for viewing the status of detectors installed in places such as residential apartments or other normally inaccessible or dangerous areas such as under false floors or above false ceilings.
The C-9314P indicator may be connected to any compatible detector base.
Key Features of the C-9314P |
|---|
|
> Direct two-wire connection to detector
> Large angle of visibility > Compatible with third-party products |
| Brand | GST |
|---|---|
| Manufacturer Part No. | C-9314P |
Write Your Own Review
FAQ’s for GST DC9000 / DI9000 Series Conventional Remote Indicator (C-9314P)
No questions yet. Be the first to ask the question!
Product Specification for GST DC9000 / DI9000 Series Conventional Remote Indicator (C-9314P)
| General | |
|---|---|
| Compatibility | GST DC-9000E Systems |
| Electrical | |
| Operating voltage | 2 to 3 VDC |
| Current consumption | 0 (Standby) ≤30 mA |
| Cable size | >1.0 mm² |
| VID | |
| Colour | Red |
| Flash frequency | Constant ON |
| Synchronization | No |
| Physical | |
| Physical dimensions | 64.5 x 64.5 x 31.4 mm (W x H x D) |
| Colour | White |
| Mounting type | Ceiling mount, Wall mount |
| Mounting position | Ceiling, Wall |
| Material | ABS |
| Environmental | |
| Vandal proof | No |
| Operating temperature | -10 to +50°C |
| Relative humidity | ≤95%, non condensing |
| Environment | Indoor |
| IP rating | IP20 |
| Regulatory | |
| Compliancy | CE |
